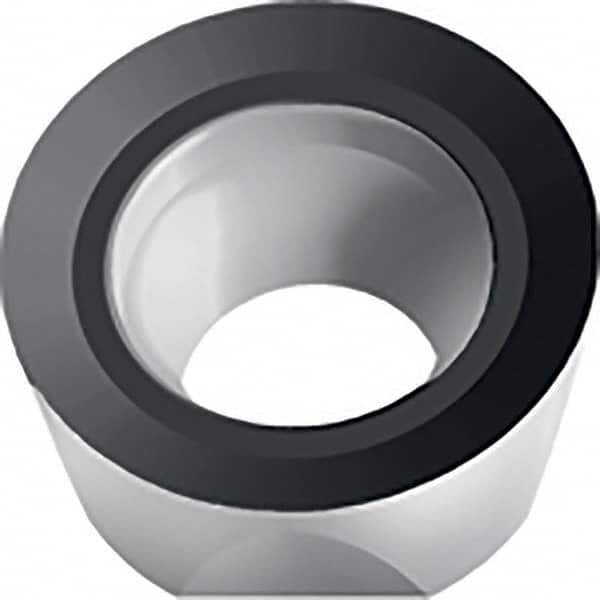

ROMX2006M0-D57 WSP45S Carbide Milling Insert TiAlN/Al2O3 Finish, 0.7874″ Long x 1/4″ Thick x 0.7874″ Wide
Item #: 16279564
Brand: Walter
Model #: 8132945
Product Specifications
| Insert Style | ROMX |
| Insert Size Code | 20 |
| Insert Size | 2006M0 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.7870 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Decimal Inch) | 0.3940 |
| Corner Radius (mm) | 10.01 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Insert Hand | Neutral |
| Relief Angle | 0.00 |
| Series | ROMX |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.2560 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (mm) | 20.00 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Super-Alloys & Titanium |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | ROMX2006M0-D57 WSP45S |
| Iso Code | ROMX2006M0-D57 WSP45S |
| Standards | ISO; ANSI |
| Chip Breaker | D57 |
| Shape | Round |
| Single or Double Sided Insert | Single |
| Coating/Finish | Coated |
| Width (Decimal Inch - 4 Decimals) | 0.7874 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
| Length (Decimal Inch - 4 Decimals) | 0.7874 |
