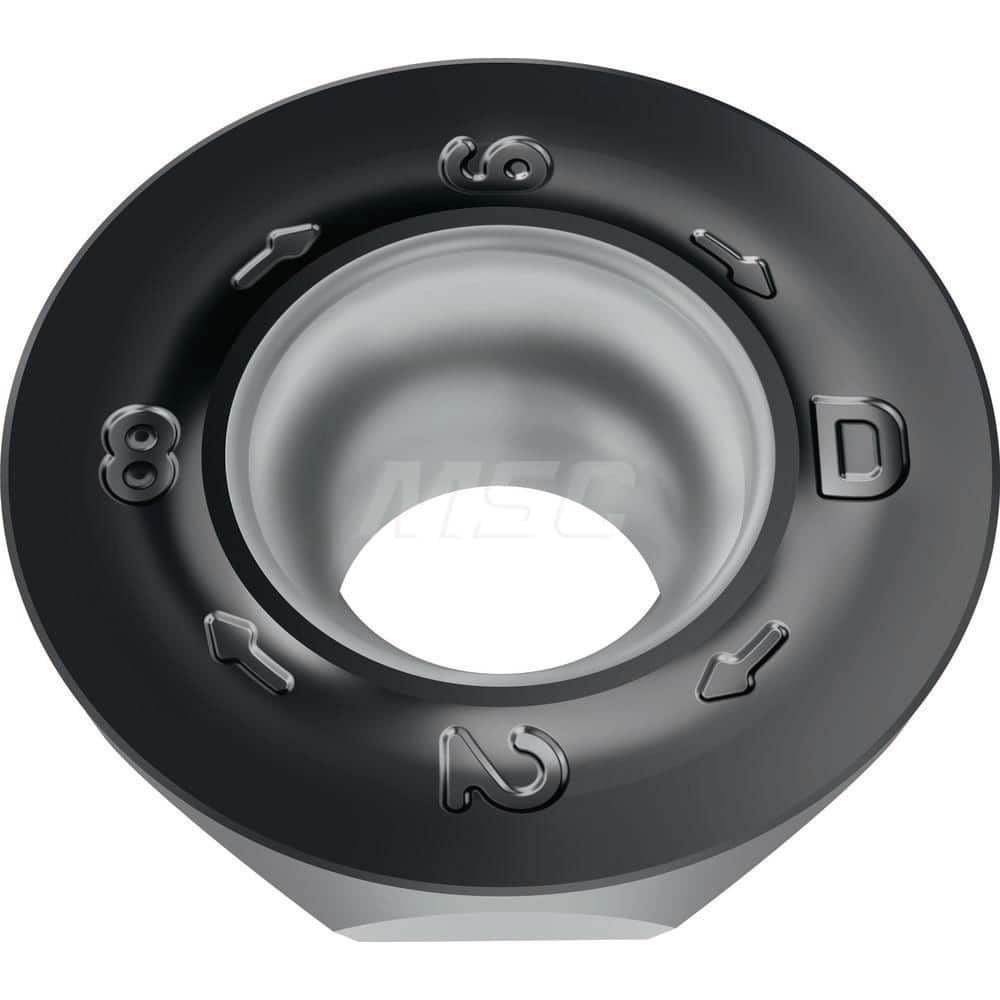

ROMX2006M0D57 WKP35-S Carbide Milling Insert TiCN/Al2O3/TiCN Finish, 1/4″ Thick
Item #: 16279549
Brand: Walter
Model #: 8132943
Product Specifications
| Insert Style | ROMX |
| Insert Size Code | 20 |
| Insert Size | 2006M0 |
| Insert Material | Solid Carbide |
| Material Grade | P35; K35 |
| Manufacturer Grade | WKP35S |
| Inscribed Circle (Decimal Inch) | 0.7874 |
| Inscribed Circle (mm) | 20.00 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Decimal Inch) | 0.3940 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | ROMX |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2560 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (mm) | 20.00 |
| Insert Shape | Round |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Ansi Code | ROMX2006M0-D57 WKP35S |
| Iso Code | ROMX2006M0D57 WKP35-S |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | ROMX2006M0D57 |
| Chip Breaker | D57 |
| Shape | Round |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.2500 |
