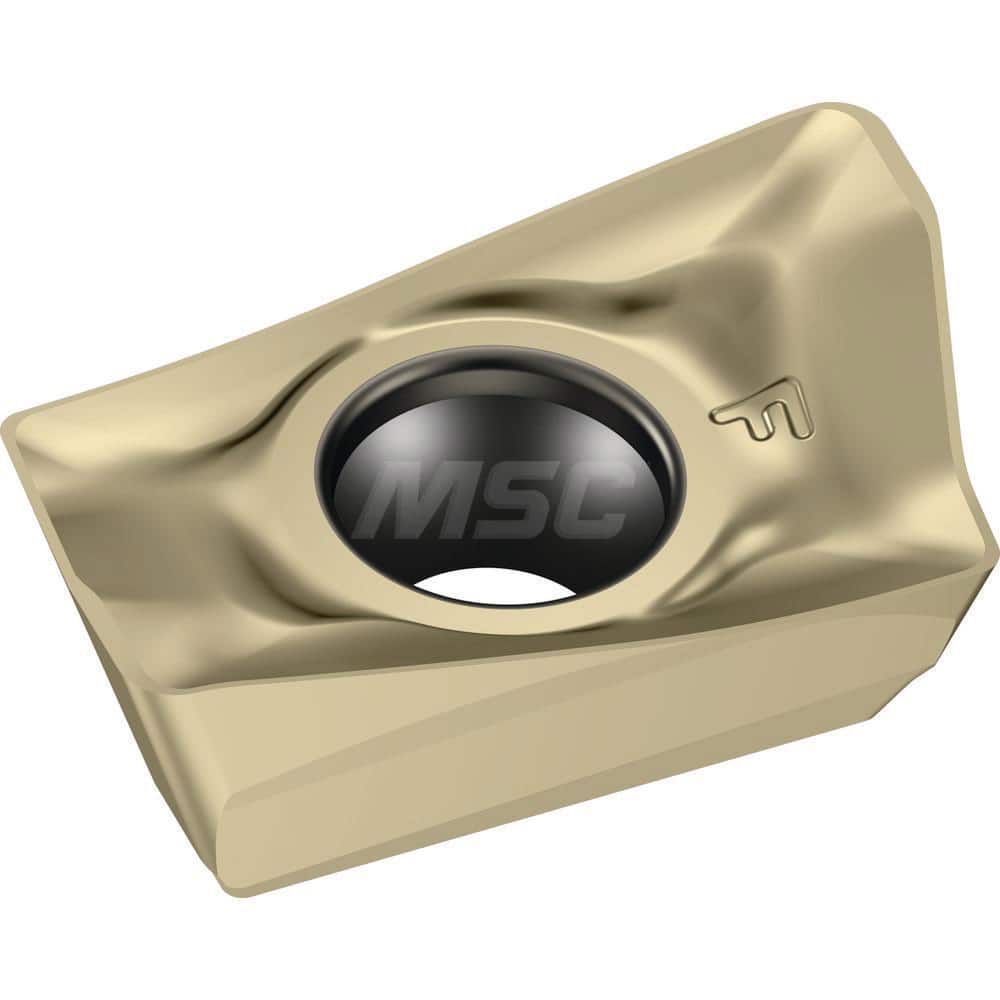

Milling Insert: ADGT1204PER-G77 WSP45G, WSP45G, Solid Carbide N/A Finish,
Item #: 16278897
Brand: Walter
Model #: 8112803
Product Specifications
| Insert Style | ADGT |
| Insert Size Code | 12 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.3310 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Inscribed Circle Range (Decimal Inch) | 0.3000 to 0.3500 |
| Insert Hand | Right Hand |
| Relief Angle | 15.00 |
| Series | ADGT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1340 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (mm) | 13.60 |
| Insert Shape | Parallelogram |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | ADGT1204PER-G77 WSP45G |
| Chip Breaker | G77 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
