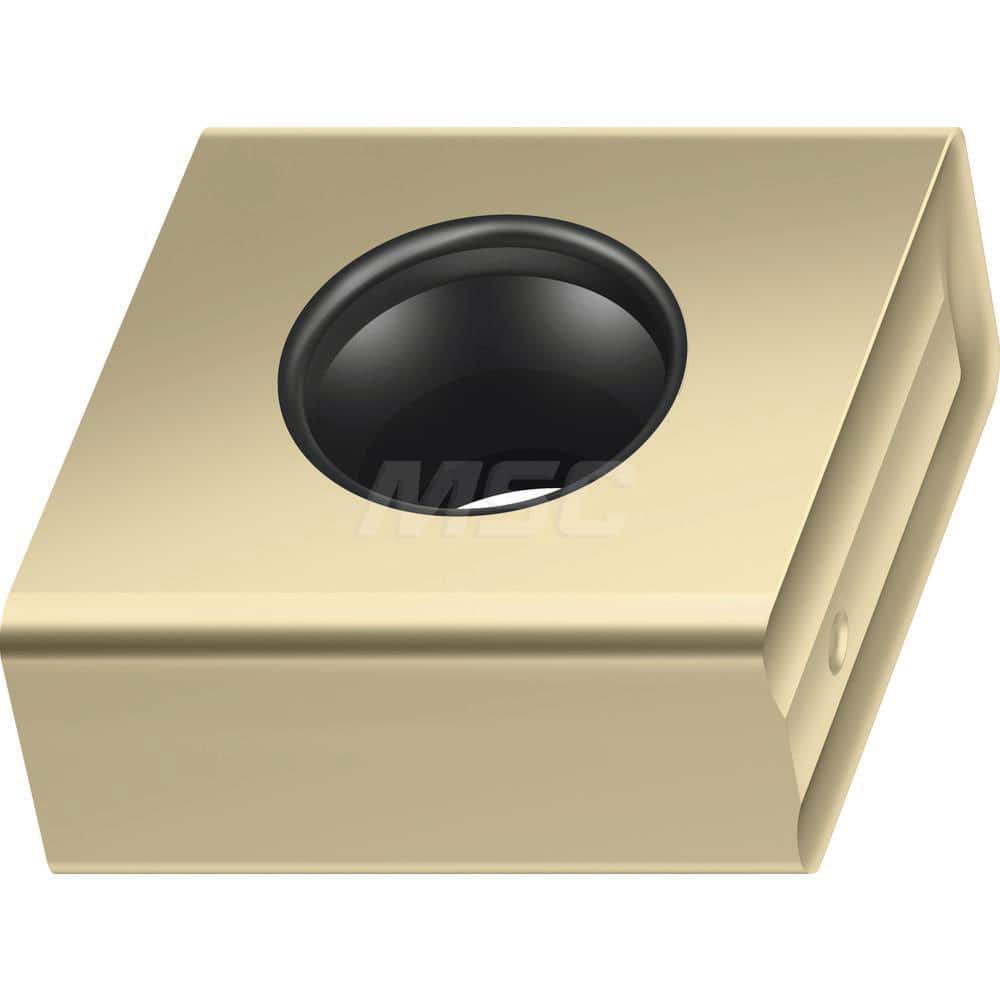

Milling Insert: ODHT0504ZZN-G77 WSP45G, WSP45G, Solid Carbide N/A Finish,
Item #: 16278434
Brand: Walter
Model #: 8112881
Product Specifications
| Insert Style | ODHT |
| Insert Size Code | 05 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | WSP45G |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness Range (Decimal Inch) | 0.1850 to 0.2000 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Inscribed Circle Range (Decimal Inch) | 0.5000 to 0.5100 |
| Insert Hand | Neutral |
| Relief Angle | 15.00 |
| Series | ODHT |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (mm) | 5.26 |
| Insert Shape | Octagon |
| Primary Workpiece Material | Super-Alloys & Titanium; Stainless Steel; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | ODHT0504ZZN-G77 WSP45G |
| Chip Breaker | G77 |
| Coating/Finish | Coated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1870 |
