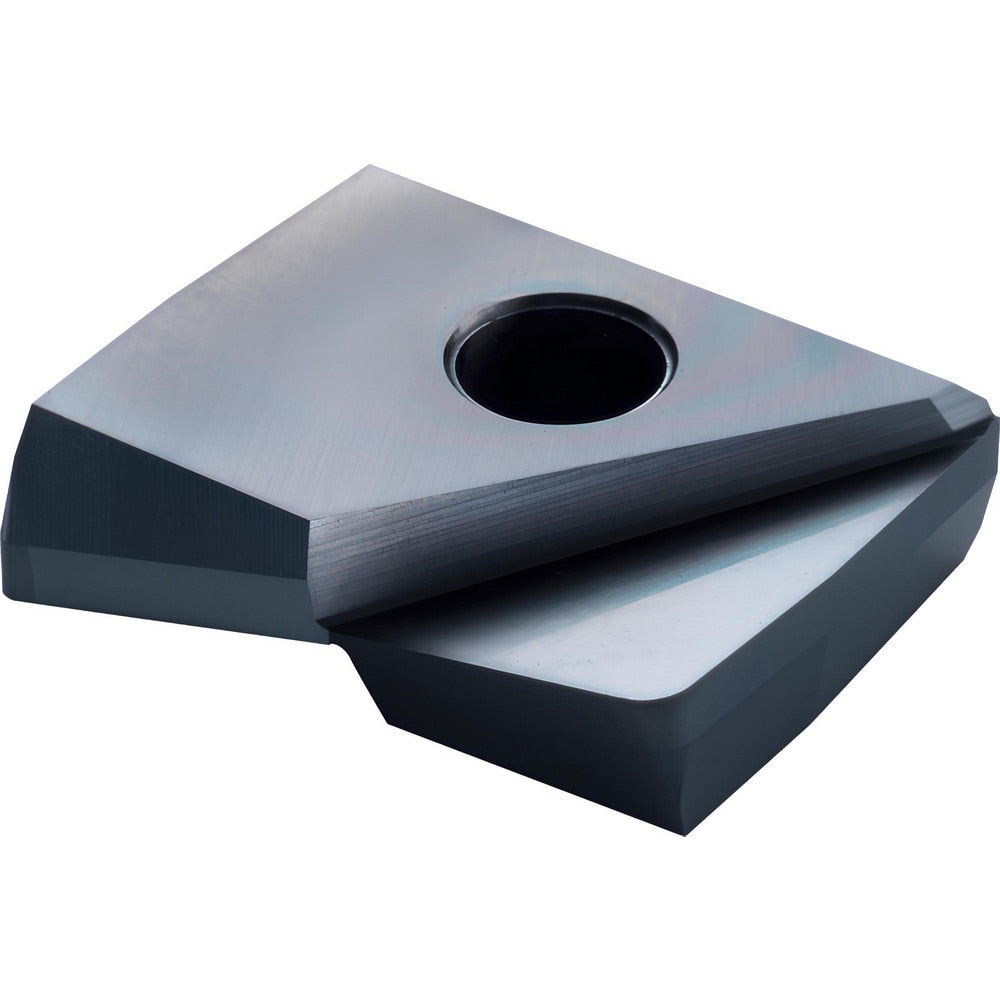

Milling Insert: PFR300R30-ST XP3225, Solid Carbide
Item #: 55808612
Brand: OSG
Model #: 7820232
Product Specifications
| Insert Style | PFR |
| Insert Size | 30 |
| Insert Material | Solid Carbide |
| Insert Shape | Bull Nose |
| Manufacturer Grade | XP3225 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 3.00 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2756 |
| Thickness (mm) | 7.00 |
| Coating/Finish | Cr |
| Insert Size Code | 300R30 |
| Inscribed Circle (Decimal Inch) | 1.1811 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Series | 78PFR |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M; N |
| Secondary Workpiece Material | Hard Material; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Ansi Code | PFR300R30-ST |
| Iso Code | PFR300R30-ST |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 7820232 |
| Cutter Series Compatibility | 78PFR |
| Chip Breaker | ST |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 22.50 |
| Width (Decimal Inch - 4 Decimals) | 1.1811 |
| Width (mm - 2 Decimals) | 30.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8858 |
| Insert Style | PFR |
| Insert Size | 30 |
| Insert Material | Solid Carbide |
| Insert Shape | Bull Nose |
| Manufacturer Grade | XP3225 |
| Corner Radius (Decimal Inch) | 0.1181 |
| Corner Radius (mm) | 3.00 |
| Number Of Cutting Edges | 1 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2756 |
| Thickness (mm) | 7.00 |
| Coating/Finish | Cr |
| Insert Size Code | 300R30 |
| Inscribed Circle (Decimal Inch) | 1.1811 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Maximum Depth of Cut (mm) | 10.00 |
| Series | 78PFR |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M; N |
| Secondary Workpiece Material | Hard Material; Cast Iron |
| Secondary Workpiece Material Code | H; K |
| Ansi Code | PFR300R30-ST |
| Iso Code | PFR300R30-ST |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | 7820232 |
| Cutter Series Compatibility | 78PFR |
| Chip Breaker | ST |
| UNSPSC Code | 23291601 |
| Material Application | Non-Ferrous Metal; Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 90 |
| Length (mm) | 22.50 |
| Width (Decimal Inch - 4 Decimals) | 1.1811 |
| Width (mm - 2 Decimals) | 30.00 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.8858 |
| MSC Part # | 55808612 |
| Mfr Part # | 7820232 |
| Country of Origin Country of Origin is subject to change | Japan |
