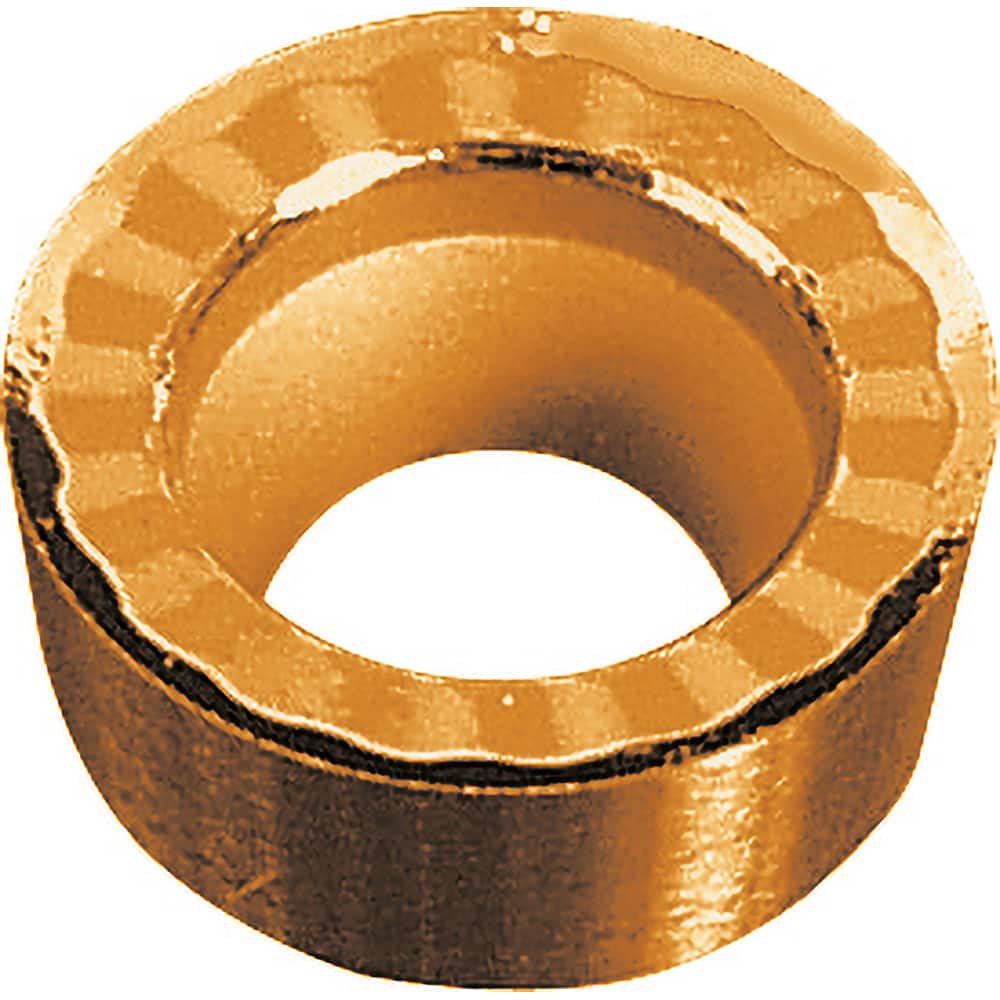

RCGT0803MOFN-ACB AT20 Carbide Turning Insert Neutral, 8mm Inscribed Circle, 3.18mm Thick, Round
Item #: 15591829
Brand: Arno
Model #: 21753
Product Specifications
| Insert Style | RCGT |
| Insert Shape Code | R |
| Insert Size Code | 0803 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AT20 |
| Maximum Depth of Cut (mm) | 3.00 |
| Inscribed Circle (mm) | 8.00 |
| Inscribed Circle (Decimal Inch) | 0.3140 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 3.18 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | N |
| Secondary Workpiece Material | P; S; K; M |
| Iso Code | RCGT 0803MOFN-ACB AT20 |
| Manufacturers Catalog Number | RCGT 0803MOFN-ACB |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | ACB |
| Cutting Edge Style | Sharp |
| Style | RCGT |
| Industry Standard Number | RCGT 0803MOFN-ACB AT20 |
| Width (Mm - 2 Decimals) | 8.00 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Machining; Turning |
