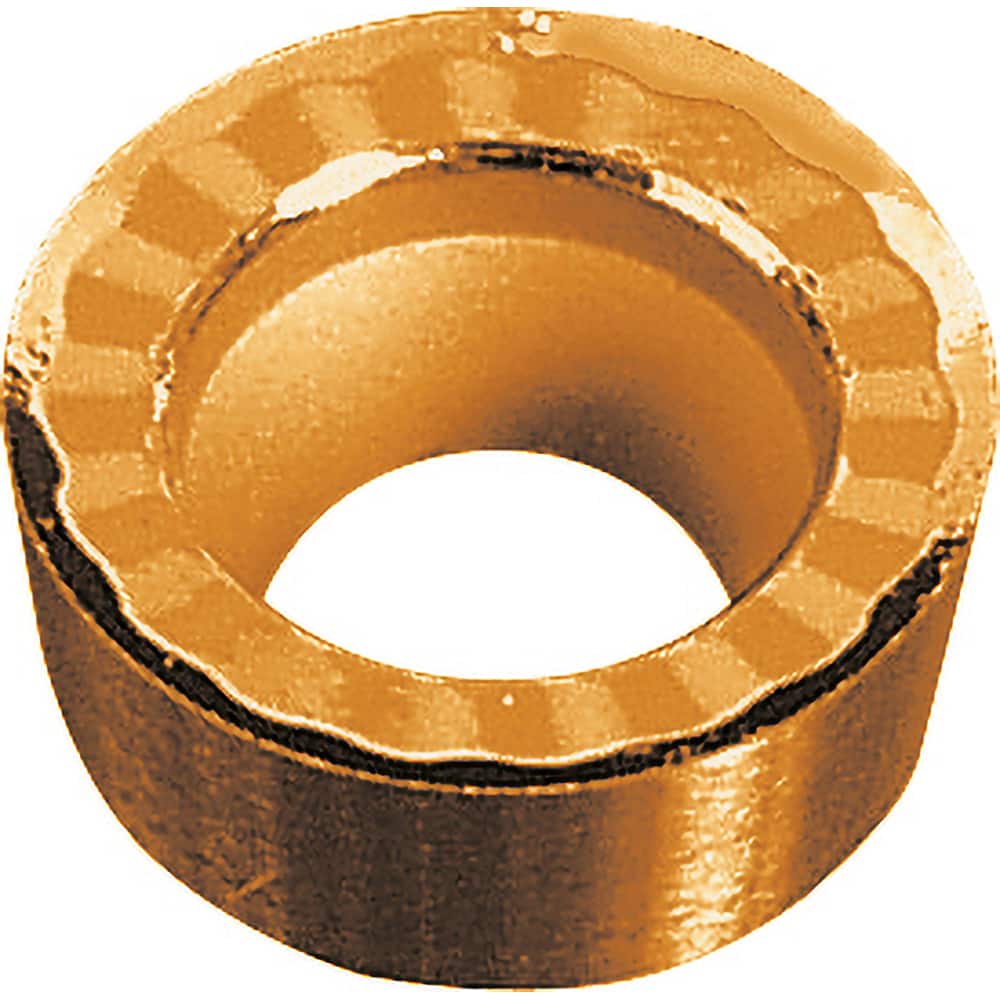

RCGT1003MOFN-ACB AL10 Carbide Turning Insert Neutral, 10mm Inscribed Circle, 3.18mm Thick, Round
Item #: 15591001
Brand: Arno
Model #: 21771
Product Specifications
| Insert Style | RCGT |
| Insert Shape Code | R |
| Insert Size Code | 1003 |
| Insert Shape | Round |
| Clearance Code | C |
| Tolerance Code | G |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AL10 |
| Maximum Depth of Cut (mm) | 4.00 |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Insert Holding Method | Screw |
| Insert Hand | Neutral |
| Insert Thickness | 3.18 |
| Relief Angle | 7 |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | P; K |
| Secondary Workpiece Material | S; M |
| Iso Code | RCGT 1003MOFN-ACB AL10 |
| Manufacturers Catalog Number | RCGT 1003MOFN-ACB |
| Cutting Direction | Neutral |
| Coating Classification | PVD |
| Chip Breaker | ACB |
| Cutting Edge Style | Sharp |
| Style | RCGT |
| Industry Standard Number | RCGT 1003MOFN-ACB AL10 |
| Width (Mm - 2 Decimals) | 10.00 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Machining; Turning |
