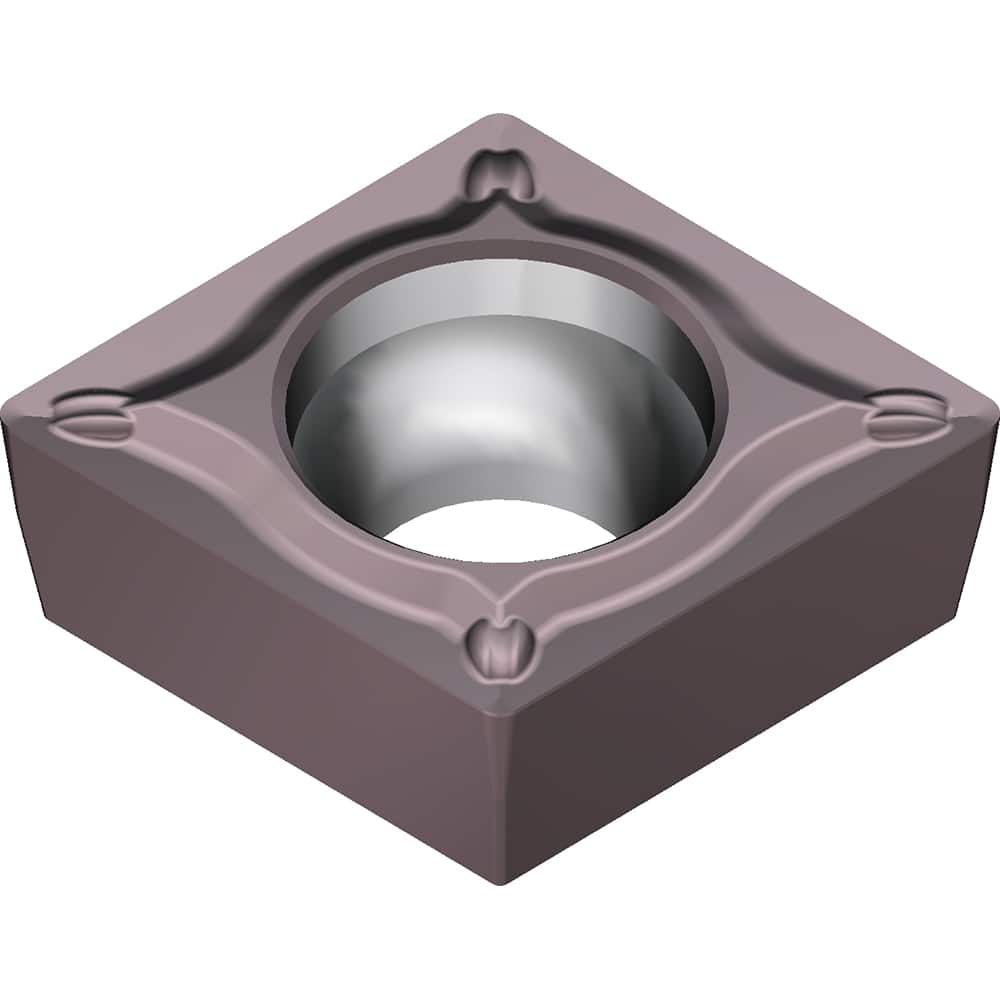

CCMT21.50.5ESU AC6040M Carbide Turning Insert Absotech Finish, 0.252″ Long, 1/4″ Inscribed Circle, 0.0079″ Corner Radius, 0.0937″ Thick, Series AC6000M
Item #: 15533565
Brand: Sumitomo
Model #: 196DBPB
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 21.50.5 |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC6040M |
| Inscribed Circle (Inch) | 1/4 |
| Insert Holding Method | Screw-On |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | AC6000M |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2520 |
| Primary Workpiece Material | Stainless Steel |
| Iso Code | CCMT060202N-SU |
| Manufacturers Catalog Number | CCMT21.50.5ESU-AC6040M |
| Material Grade | M40; M30 |
| Chip Breaker | ESU |
| Coating/Finish | Absotech |
