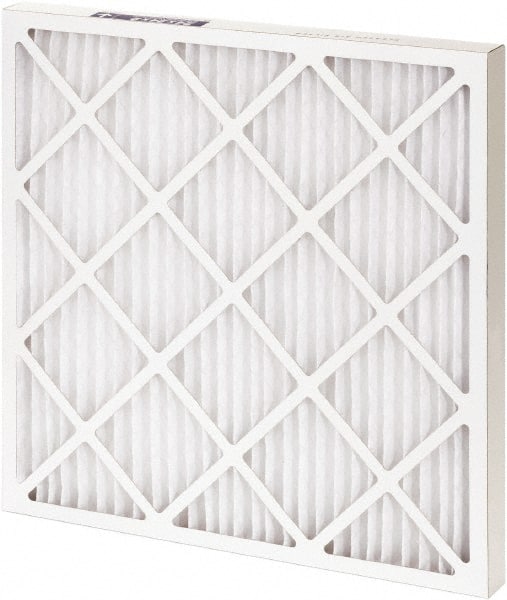

Pleated Air Filter: 24 x 24 x 2″, MERV 8, 30 to 35% Efficiency, Wire-Backed Pleated Antimicrobial Synthetic, Beverage Board Frame, 1,500 CFM, Use with Any Unit
Item #: 15164619
Brand: PRO-SOURCE
Model #: PRO24242AN
Product Specifications
| Filter Type | Wire-Backed Pleated |
| Pleat Type | Wire-Backed Pleated |
| Media Material | Antimicrobial Synthetic |
| Frame Material | Beverage Board |
| Air Flow | 1500 CFM |
| Particle Capture Efficiency (%) | 30-35 |
| Nominal Depth (Inch) | 2 |
| Nominal Depth | 2 in |
| Nominal Width (Inch) | 24 |
| Nominal Width | 24 in |
| Nominal Height | 24 in |
| Nominal Height (Inch) | 24 |
| Initial Resistance | 0.14 (at 375 fpm);0.2 (at 500 fpm) in wg |
| Integrated Frame | Yes |
| Actual Depth (Inch) | 1-3/4 |
| Maximum Air Flow (FPM) | 500 |
| Actual Width (Inch) | 23-3/8 |
| Actual Height (Inch) | 23-3/8 |
| For Use With | Any Unit |
| Standards | UL 900; ASHRAE 52.2 |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Capacity | Standard |
| Features | Antimicrobial |
| Merv Rating | 8 |
| Maximum Temperature (F) ( - 0 Decimals) | 200 |
