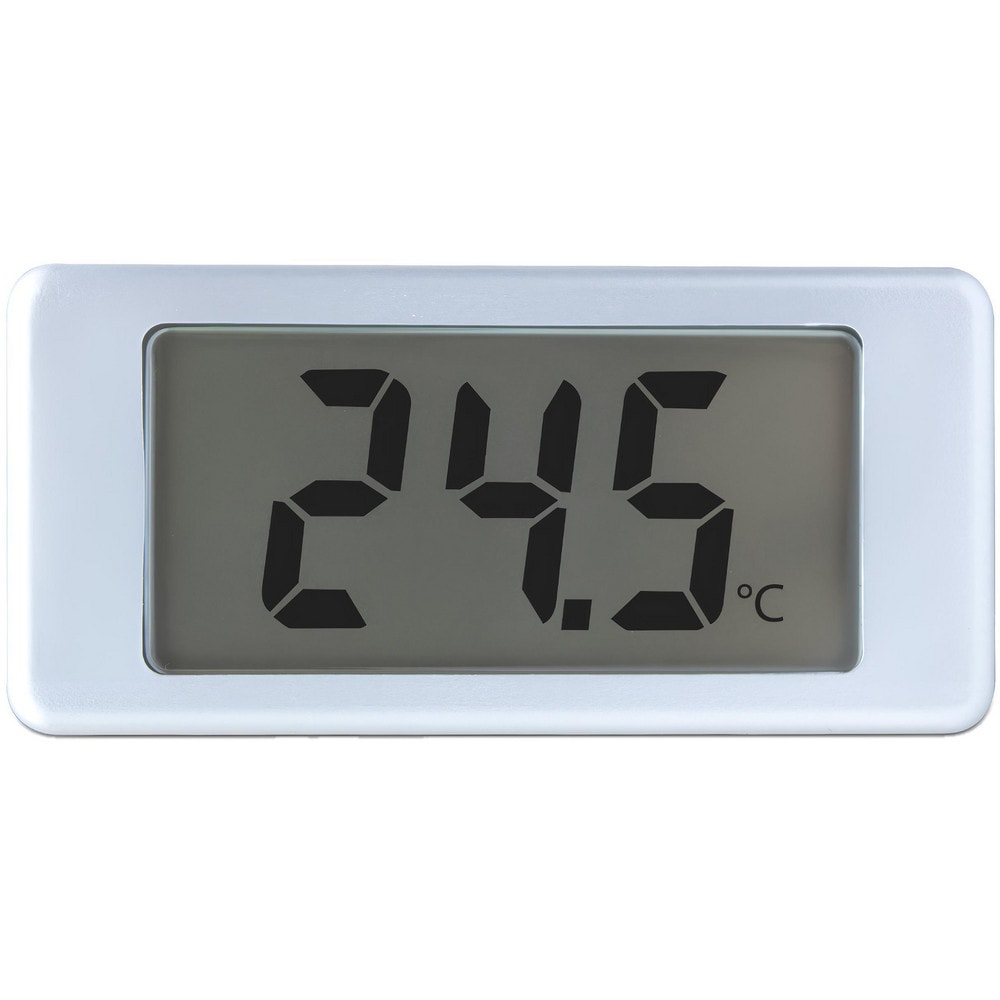

Panel Meters; Panel Meter Type: Panel Meter; Power Measurement Type: Temperature Meter; Panel Meter Display Type: Digital LCD; Maximum Input Voltage: 28
Item #: 86613122
Brand: Lascar Electronics
Model #: EMT 1900
Product Specifications
| Panel Meter Type | Panel Meter |
| Power Measurement Type | Temperature Meter |
| Panel Meter Display Type | Digital LCD |
| Maximum Input Voltage | 28 |
| Mounting Diameter | 0.22 mm; 5.5 |
| Measures | Temperature |
| Mount Type | Panel; Threaded Stud |
| Number Of Display Digits | 4 |
| Overall Depth | 0.22; 5.5 |
| Overall Height | 21.0; 0.82 |
| Overall Width | 44 |
| Scale | Celsius; Fahrenheit |
| Terminal Type | Plug-in |
| Color of Display Digits | Black |
| Standards Met | Supply Current: 1 mA; Internal Temp Range: -10 to 50°C (4 to 122°F); Accuracy: 1°C (+/-2); Supply Voltage: 4 to 28 V DC; Operating Temp: -10 to 50°C (14 to 122°F); External Temp Range: -20 to 220°C (-4 to 428°F) |
| UNSPSC Code | 41113600 |
| Country of Origin | China |
