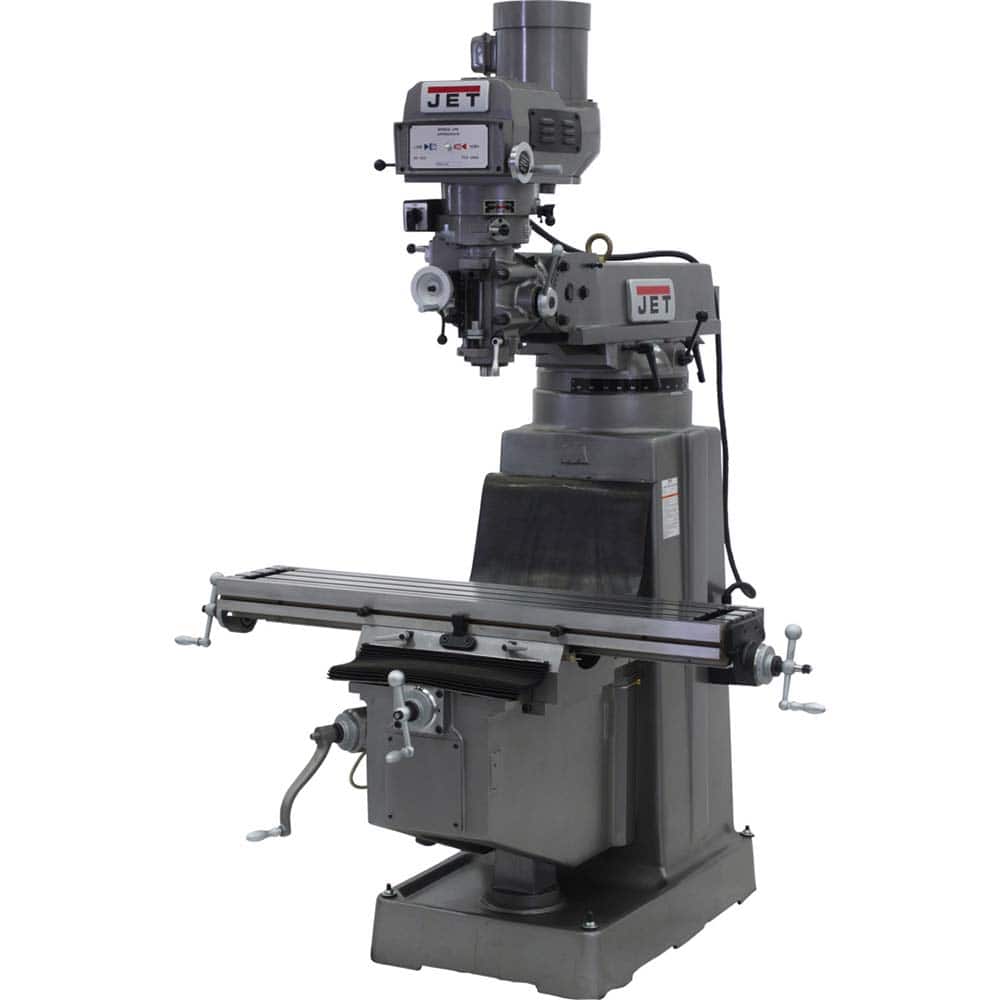

Jet - 50 x 10" 3 hp 3 Phase 230 V Variable Speed Knee Milling Machine
Item #: 14767164
Brand: Jet
Model #: 690926
Product Specifications
| Spindle Speed Control | Variable |
| Table Length (Inch) | 10 |
| Table Width (Inch) | 50 |
| Horsepower (HP) | 3 |
| Phase | 3 |
| Voltage | 230 |
| Longitudinal Travel (Decimal Inch) | 35.6000 |
| Cross Travel (Decimal Inch) | 14.7500 |
| Knee Travel (Decimal Inch) | 16.1250 |
| Maximum Spindle Speed (RPM) | 4200 |
| Spindle Taper Size | R8 |
| Number of Spindle Speeds | Variable |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Quill Diameter (Inch) | 3-3/8 |
| Minimum Spindle to Table Distance (Decimal Inch) | 4.7500 |
| Maximum Spindle to Table Distance (Decimal Inch) | 20.7500 |
| Maximum Spindle To Column Distance (Inch) | 20-3/4 |
| Maximum Spindle To Column Distance (Decimal Inch) | 26.7500 |
| Table Load Capacity (Lb.) | 840.00 |
| Number of T-Slots | 3.000 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 48.00 |
| Ram Travel Length (Inch) | 15-7/8 |
| Overall Length (Inch) | 66 |
| Overall Height (Inch) | 87 |
| Overall Depth (Inch) | 63 |
| Warranty | 2 Year |
