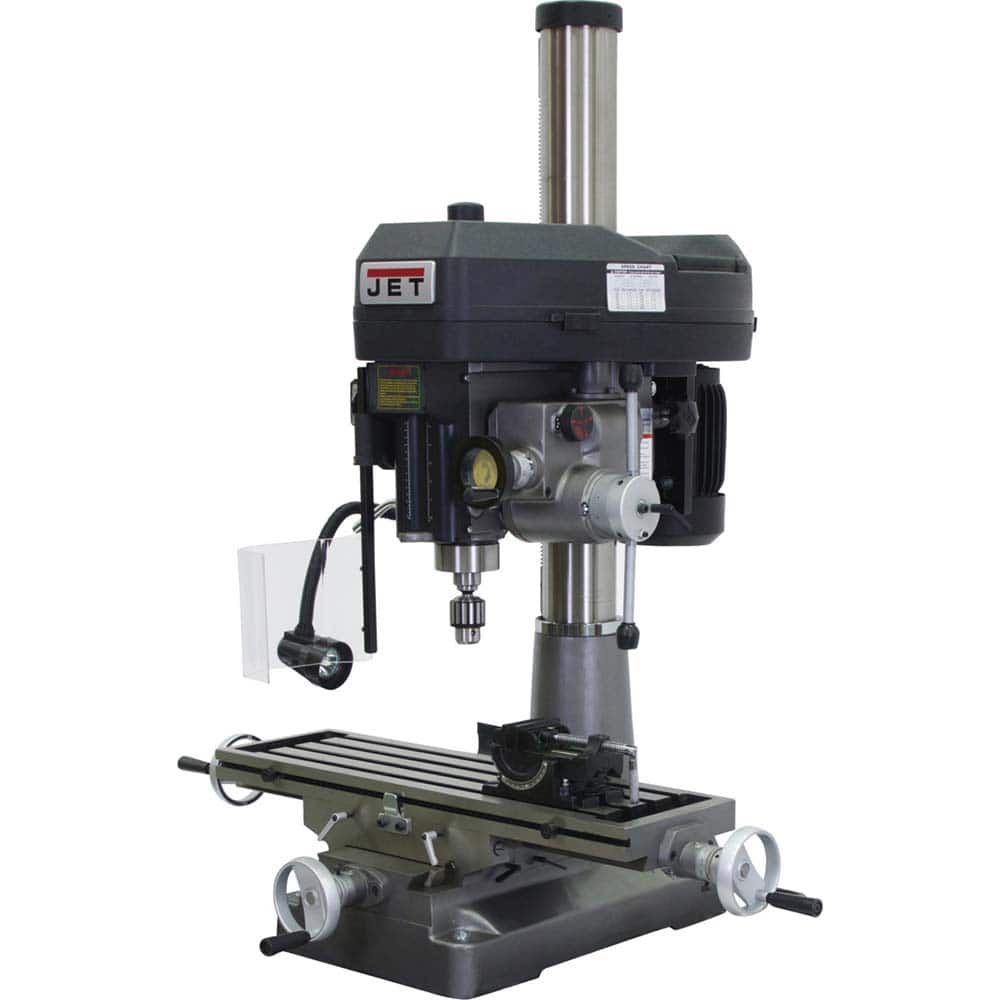

Jet - Mill Drill Machines; Spindle Speed Control: Belt Driven ; Phase: 1 ; Table Length (Inch): 9-1/2 ; Table Width (Inch): 32-1/4 ; Longitudinal Travel (Inch): 20-1/2 ; Cross Travel (Inch): 5
Item #: 14767032
Brand: Jet
Model #: 350402
Product Specifications
Mill Drill Machines; Spindle Speed Control: Belt Driven ; Phase: 1 ; Table Length (Inch): 9-1/2 ; Table Width (Inch): 32-1/4 ; Longitudinal Travel (Inch): 20-1/2 ; Cross Travel (Inch): 5
| Spindle Speed Control | Belt Driven |
| Phase | 1 |
| Table Length (Inch) | 9-1/2 |
| Table Width (Inch) | 32-1/4 |
| Longitudinal Travel (Inch) | 20-1/2 |
| Cross Travel (Inch) | 5 |
| Number of Spindle Speeds | 12 |
| Minimum Spindle Speed (RPM) | 150 |
| Maximum Spindle Speed (RPM) | 3000 |
| Spindle Travel Length (Inch) | 5 |
| Machine Type | Mill Drill Combination |
| Power Down Feed | Yes |
| Spindle Taper Size | R8 |
| T-Slot Size (Inch) | 1-13/16 |
| Drilling Capacity in Cast Iron (Inch) | 1-1/4 |
| Quill Diameter (Inch) | 3 |
| Maximum Spindle to Table Distance (Inch) | 28 |
| Maximum Spindle To Column Distance (Inch) | 28 |
| Table Load Capacity (Lb.) | 400.00 |
| T-Slot Size (Inch) | 5/8 |
| Head Swivel (Degrees) | 360.00 |
| Horsepower (HP) | 2 |
| Voltage | 115/230V |
| Overall Length (Inch) | 47 |
| Overall Height (Inch) | 5 |
| Overall Depth (Inch) | 40 |
| Includes | JMD-18PFN MILL/DRILL W/203 DRO |
| Special Item Information | Down-Feed |
