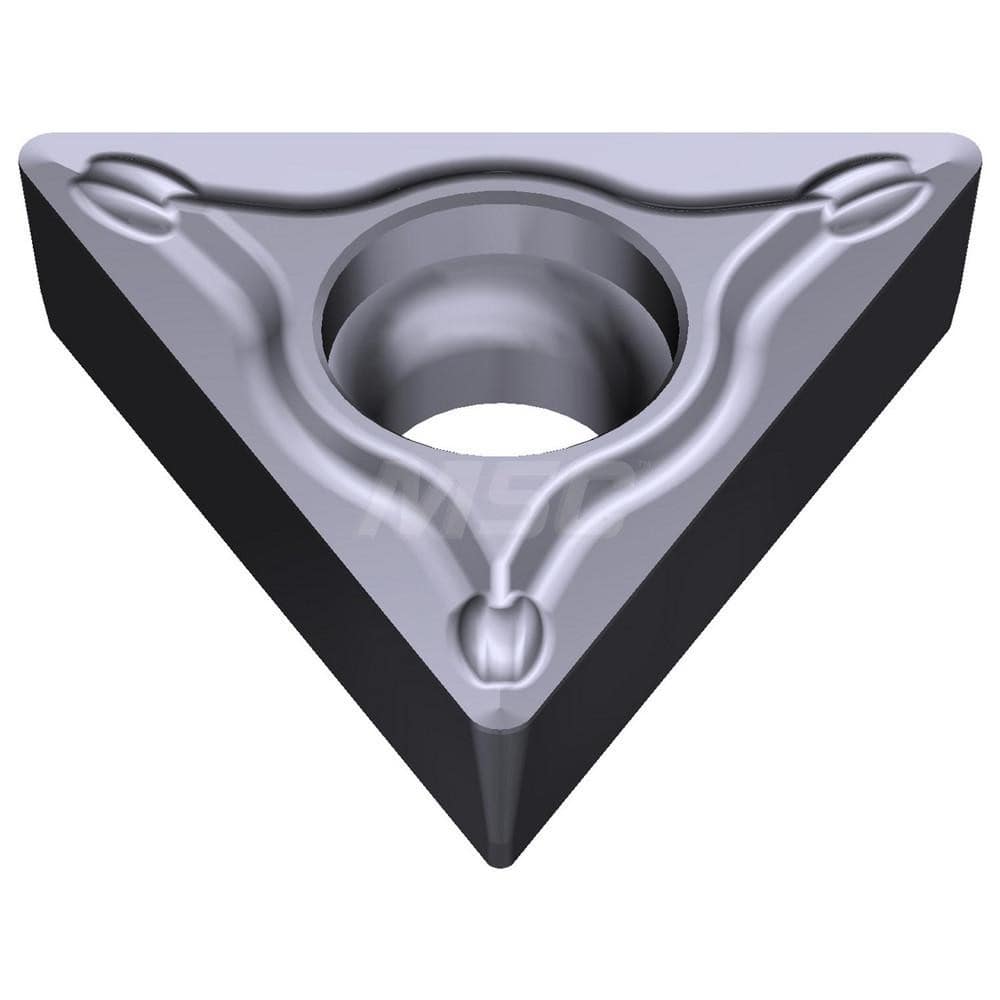

Turning Insert: TPMT630.5ESU AC5005S, Solid Carbide Absotech Finish, 0.3228″ Long, 0.0079″ Corner Radius, 60.0 ° N/A Series AC5005S
Item #: 14600662
Brand: Sumitomo
Model #: 19W2BWV
Product Specifications
| Insert Style | TPMT |
| Insert Shape Code | T |
| Insert Size Code | 630.5 |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5005S |
| Hole Diameter (Decimal Inch) | 0.0945 |
| Inscribed Circle (Decimal Inch) | 0.1874 |
| Insert Holding Method | Screw |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 60.0 |
| Relief Angle | 11 |
| Series | AC5005S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3228 |
| Iso Code | TPMT080202N-SU |
| Manufacturers Catalog Number | TPMT630.5ESU-AC5005S |
| Chip Breaker | ESU |
| Coating/Finish | Absotech |
