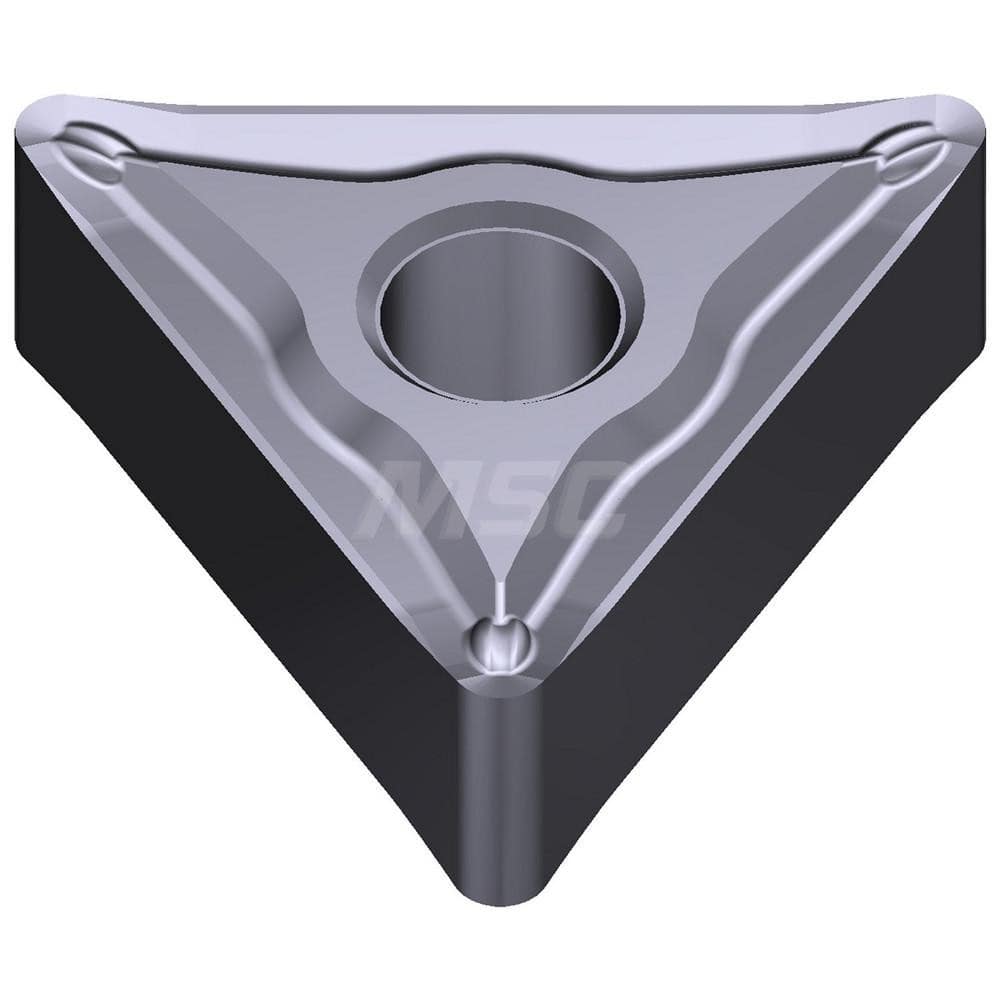

Turning Insert: TNMG330.5ESU AC5005S, Solid Carbide Absotech Finish, 0.6496″ Long, 3/8″ Inscribed Circle, 0.0079″ Corner Radius, 60.0 ° N/A Series AC5005S
Item #: 14600415
Brand: Sumitomo
Model #: 19W2BWR
Product Specifications
| Insert Style | TNMG |
| Insert Shape Code | T |
| Insert Size Code | 330.5 |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC5005S |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.81 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Holding Method | Pin; Clamp |
| Insert Thickness (Decimal Inch) | 0.1874 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Included Angle | 60.0 |
| Relief Angle | 0 |
| Series | AC5005S |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.6000 - 0.6500 |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.6496 |
| Iso Code | TNMG160402N-SU |
| Manufacturers Catalog Number | TNMG330.5ESU-AC5005S |
| Chip Breaker | ESU |
| Coating/Finish | Absotech |
