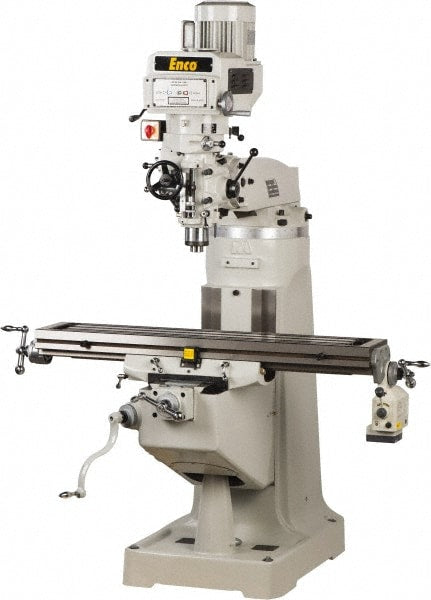

Knee Milling Machine: 2 hp, Variable Speed Pulley, 3 Phase
Item #: 06641864
Brand: Enco
Model #: 505-6790
Product Specifications
| Minimum Spindle to Table Distance (Inch) | 0 |
| Maximum Spindle to Table Distance (Inch) | 18 |
| Minimum Spindle Speed | 60.00 |
| Maximum Spindle Speed | 4200.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Phase | Three |
| Backward Head Tilt (Degrees) | 45.00 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Left-hand Head Tilt | 90 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Right-hand Head Tilt | 90.0 |
| Cross Travel (Decimal Inch) | 13.5000 |
| Cross Travel | 13.5 in |
| Longitudinal Travel | 35.0 in |
| Longitudinal Travel (Decimal Inch) | 35.0000 |
| Knee Travel (Decimal Inch) | 16.0000 |
| Knee Travel | 16.0 in |
| Quill Diameter (Decimal Inch) | 3.3750 |
| Horsepower | 2.00 |
| Ram Travel Length (Decimal Inch) | 14.5000 |
| Spindle Speed Control | Variable Speed Pulley |
| Spindle Taper Size | R8 |
| Spindle Travel Length (Inch) | 5 |
| Number Of T-slots | 3.0 |
| Number of Spindle Speeds | Variable |
| Overall Height (Inch) | 85 |
| UNSPSC Code | 23242503 |
| Overall Depth (Inch) | 74 |
| Includes | X-Axis Power Table Feed |
