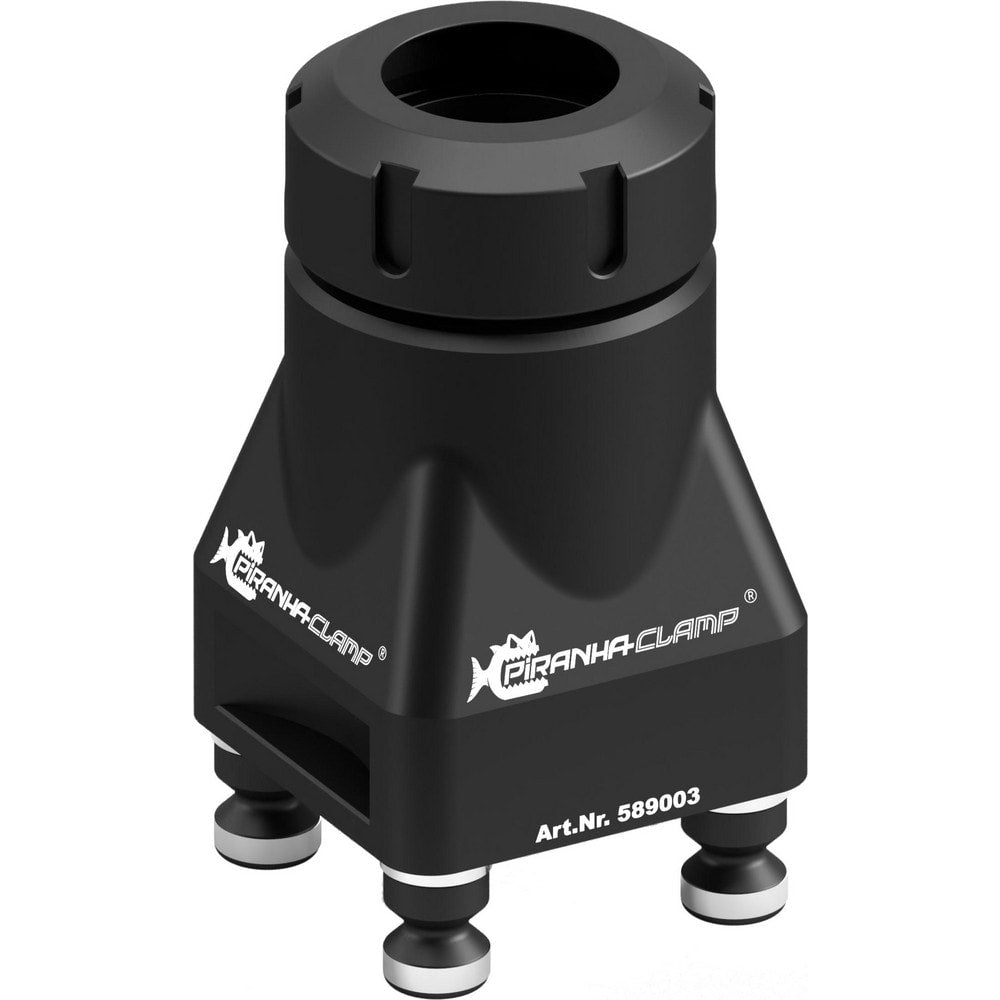

Non-Indexing Collet Fixtures; Fixture Style: Standard Collet Holding Fixture; Activation Method: Manual; Minimum Collet Capacity (Inch): 3 mm; Maximum Collet Capacity (Inch): 26 mm; Orientation Type: Vertical
Item #: 07691322
Brand: Piranha Clamp
Model #: 589003
Product Specifications
| Fixture Style | Standard Collet Holding Fixture |
| Activation Method | Manual |
| Minimum Collet Capacity (Inch) | 3 mm |
| Maximum Collet Capacity (Inch) | 26 mm |
| Orientation Type | Vertical |
| Includes | Piranha ER40 Collect Chuck Fixture That Fits On All Piranha Zero-Point Plates |
| Base Width | 70 mm |
| Inside Diameter (Decimal Inch) | 26 mm |
| Outside Diameter (Inch) | 63 mm |
| Outside Diameter (Decimal Inch) | 63 mm |
| Lever Type | Quick-Acting |
| Spindle Type | Plain |
| Collet Series Compatibility | ER40 |
| Overall Height (Inch) | 108.5 mm |
| Overall Height (Decimal Inch) | 108.5 mm |
| UNSPSC Code | 27112808 |
