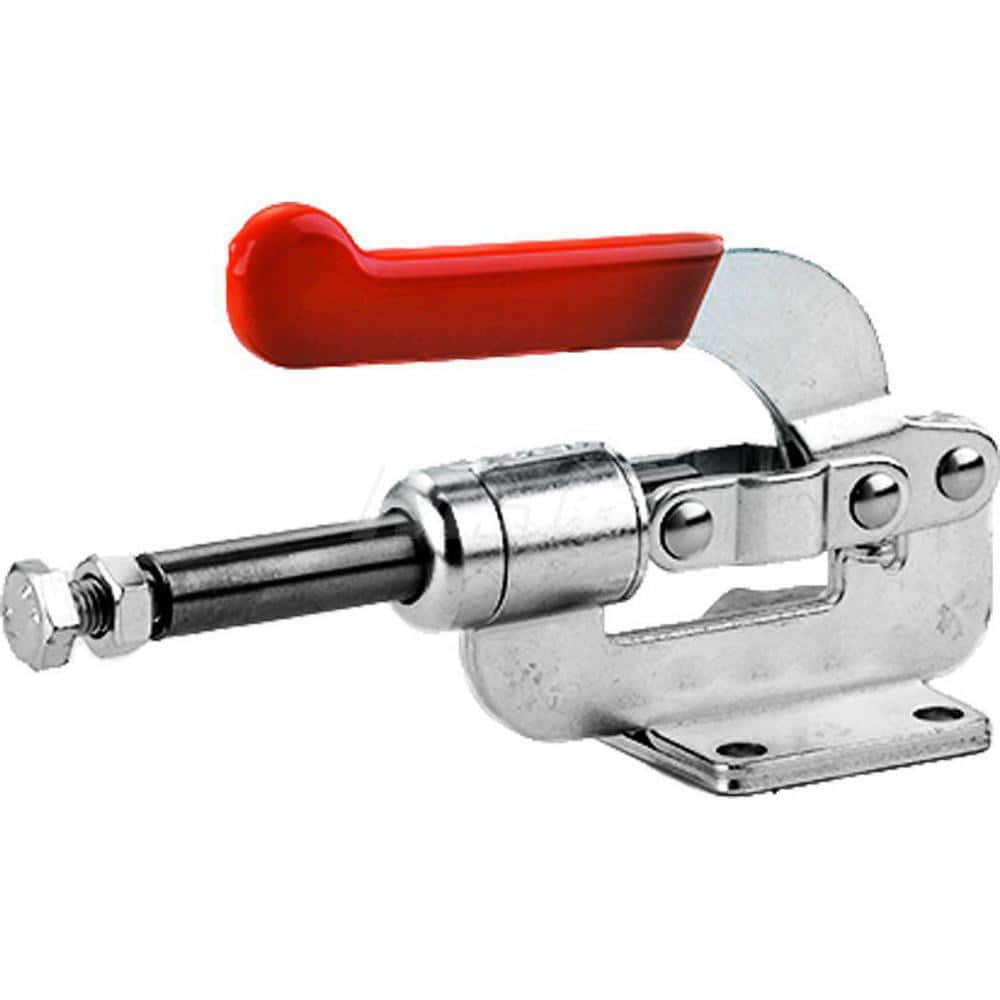

Standard Straight Line Action Clamp: 800 lb Load Capacity, 1.61″ Plunger Travel, Flanged Base 4 Mounting Hole, 0.34″ Hole, 0.61″ Plunger Dia, Contoured Plastic Softgrip & Straight Handle
Item #: 14540348
Brand: ShopForce
Model #: 30080
Product Specifications
| Load Capacity (Lb. - 3 Decimals) | 800.00 |
| Load Capacity (N) | 3558.58 |
| Load Capacity | 800.00 |
| Plunger Travel (Decimal Inch) | 1.6100 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | M10x1.50 |
| Plunger Centerline Height (Inch) | 1-3/4 |
| Plunger Diameter (Decimal Inch) | 0.6100 |
| Base Style | Flanged |
| Handle Style | Contoured Plastic Softgrip; Straight |
| Material | Steel |
| Overall Length (Decimal Inch) | 6.7500 |
| Overall Height (Decimal Inch) | 4.3300 |
| Base Length (Inch) | 2-1/4 |
| Base Length (Decimal Inch) | 2.2500 |
| Base Width (Inch) | 2-1/4 |
| Base Width (Inch) | 2.2500 |
| Handle Color | Red |
| Length Distance Between Mount Holes (Inch) | 1.6300 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.6300 |
| Mounting Hole Diameter (Decimal Inch) | 0.3400 |
| Jam Nut Height (Inch) | 1-3/4 |
| Jam Nut Hex Size (Decimal Inch) | 0.5460 |
| Jam Nut Thread Size | M6x1.00 |
| Clamp Type | Hold Down |
| Holding Capacity (kg) | 362.87 |
| Holding Capacity (N) | 3558.58 |
| Handle Movement (Degrees) | 180 |
| Spindle Length (Decimal Inch) | 1.9600 |
| Number Of Mounting Holes | 4 |
| Holding Capacity (Lb.) | 800.00 |
