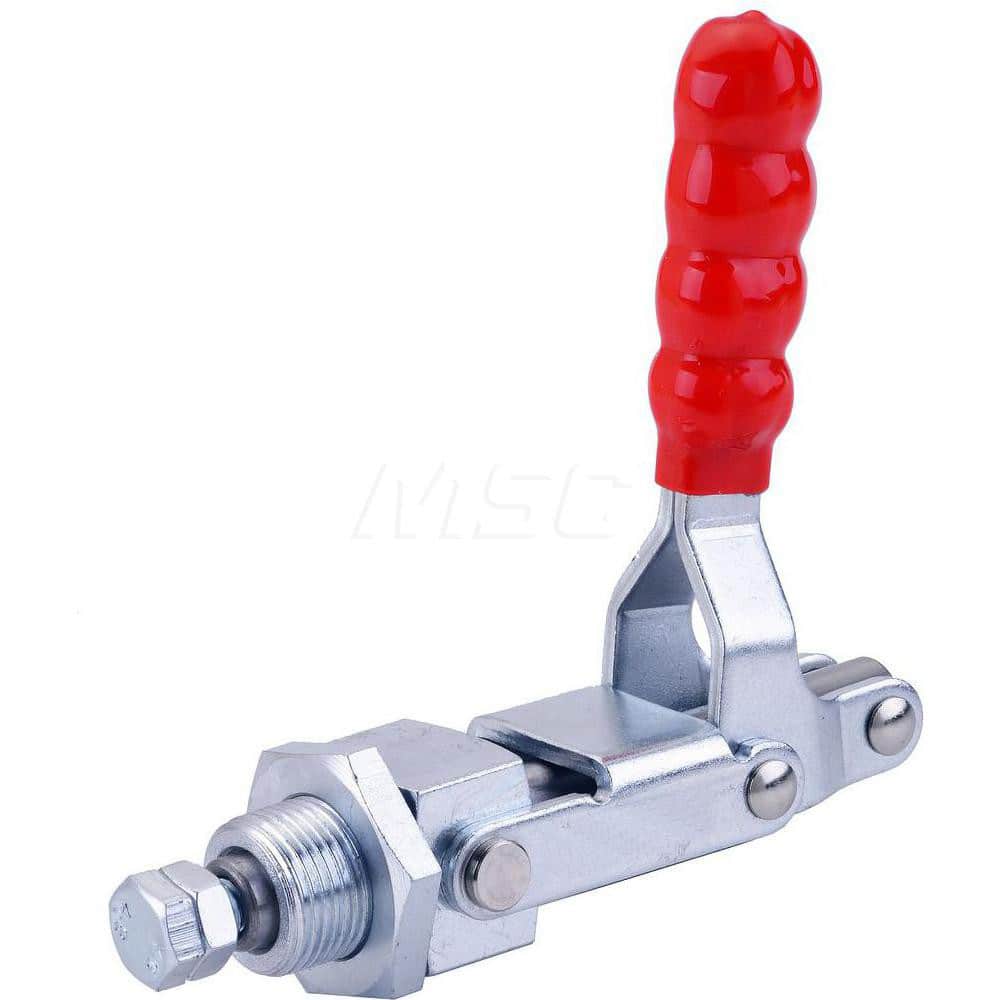

Standard Straight Line Action Clamp: 700 lb Load Capacity, 2.63″ Plunger Travel, Special Base 0.33″ Hole, 0.62″ Plunger Dia, Contoured Plastic Softgrip & Straight Handle
Item #: 14538060
Brand: ShopForce
Model #: 30060
Product Specifications
| Load Capacity (Lb. - 3 Decimals) | 700.00 |
| Load Capacity (N) | 3113.76 |
| Load Capacity | 700.00 |
| Plunger Travel (Decimal Inch) | 2.6300 |
| Plunger Shape | Round |
| Plunger Thread Style | External |
| Plunger Thread Size | 3/8-16 |
| Plunger Centerline Height (Decimal Inch) | 1.4500 |
| Plunger Diameter (Decimal Inch) | 0.6200 |
| Base Style | Special |
| Handle Style | Contoured Plastic Softgrip; Straight |
| Material | Steel |
| Overall Length (Decimal Inch) | 6.6500 |
| Overall Height (Decimal Inch) | 5.4000 |
| Base Length (Decimal Inch) | 2.4400 |
| Base Width (Inch) | 2.9900 |
| Handle Color | Red |
| Length Distance Between Mount Holes (Inch) | 1.2500 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.7800 |
| Mounting Hole Diameter (Decimal Inch) | 0.3300 |
| Jam Nut Hex Size (Decimal Inch) | 1.6130 |
| Jam Nut Thread Size | M6x1.00 |
| Clamp Type | Hold Down |
| Holding Capacity (kg) | 317.51 |
| Holding Capacity (N) | 3113.76 |
| Spindle Length (Decimal Inch) | 2.5000 |
| Holding Capacity (Lb.) | 700.00 |
