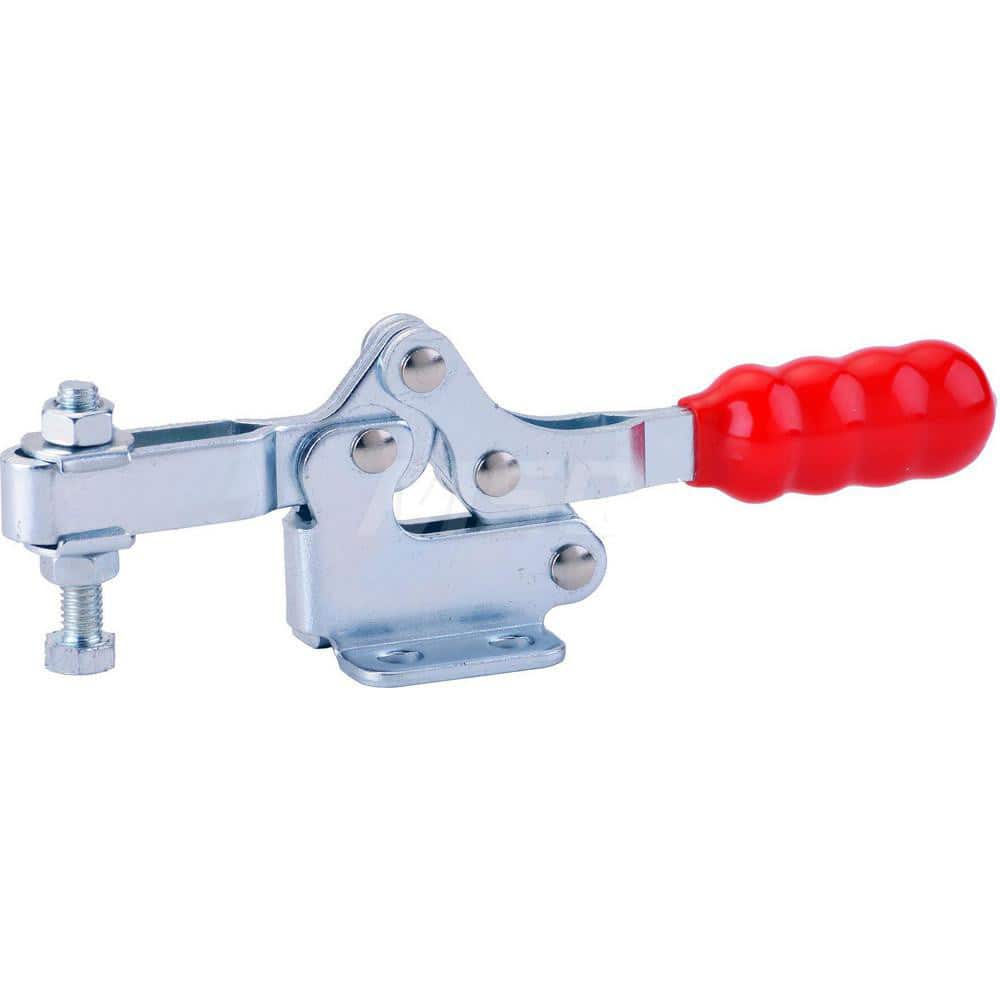

Manual Hold-Down Toggle Clamp: Horizontal, 150 lb Capacity, U-Bar, Flanged Base 76 ° Handle Movement, 94 ° Bar Opening, Plastic
Item #: 14537062
Brand: ShopForce
Model #: 60060
Product Specifications
| Handle Orientation | Horizontal |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (kg) | 68.04 |
| Holding Capacity (N) | 667.23 |
| Holding Capacity (Lb.) | 150.00 |
| Length Distance Between Mount Holes (Inch) | 0.53 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.5300 |
| Height Under Bar (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.4100 |
| Overall Height (Inch) | 1-1/2 |
| Base Width (Inch) | 1.0600 |
| Handle Style | Comfort Grip |
| Material | Plastic |
| Handle Color | Red |
| Mounting Hole Diameter (Decimal Inch) | 0.2000 |
| Bar Opening (Degrees) | 94 |
| Handle Movement (Degrees) | 76 |
| Spindle Thread Size | M5 |
| Spindle Length (Decimal Inch) | 1.1800 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 1.4600 |
| Finish Coating | Steel |
