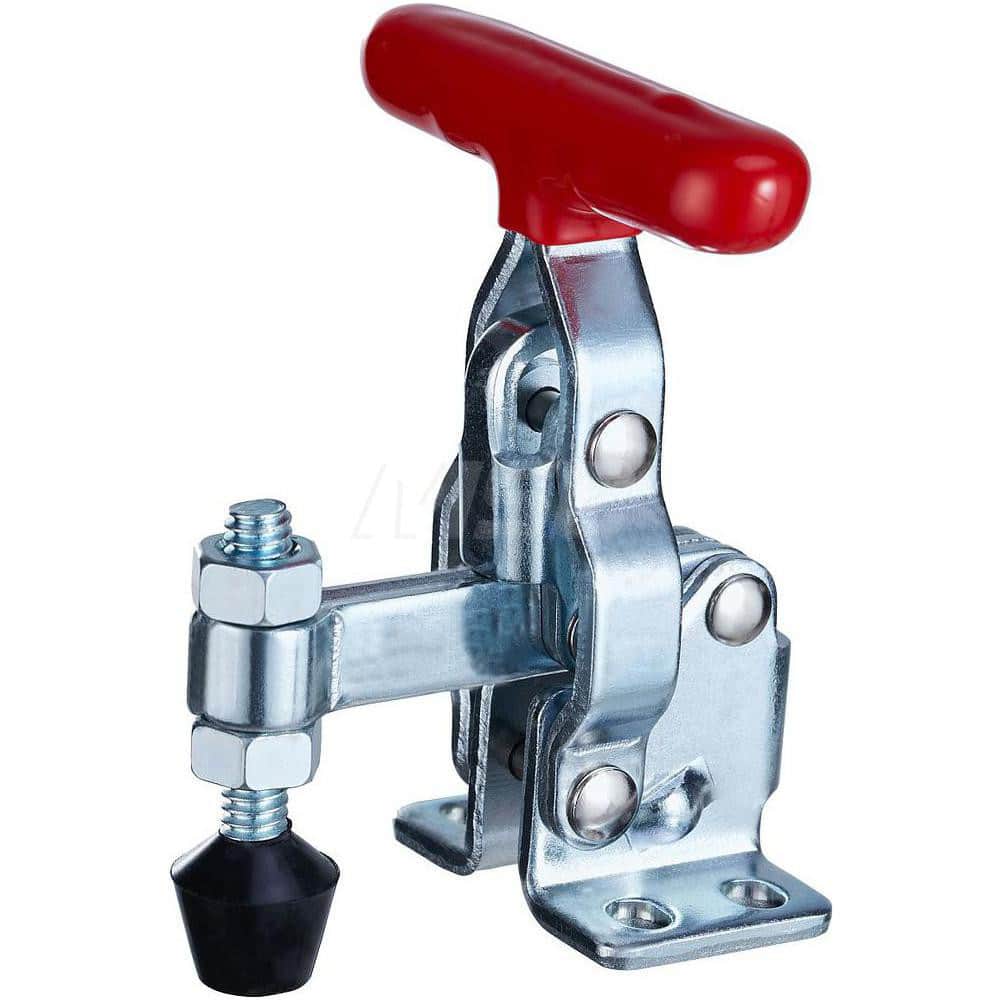

Manual Hold-Down Toggle Clamp: Vertical, 200 lb Capacity, Solid Bar, Flanged Base 60 ° Handle Movement, 100 ° Bar Opening, Plastic
Item #: 14536999
Brand: ShopForce
Model #: 50480
Product Specifications
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Flanged |
| Bar End Type | Fixed Spindle |
| Holding Capacity (kg) | 90.72 |
| Holding Capacity (N) | 889.64 |
| Holding Capacity (Lb.) | 200.00 |
| Length Distance Between Mount Holes (Inch) | 0.5 |
| Width Distance Between Mount Holes (Inch) | 1/2 |
| Height Under Bar (Decimal Inch) | 0.8900 |
| Overall Length (Decimal Inch) | 2.5200 |
| Overall Height (Decimal Inch) | 3.0800 |
| Base Length (Inch) | 1 |
| Base Width (Inch) | 1.5600 |
| Handle Style | Comfort Grip |
| Material | Plastic |
| Handle Color | Red |
| Mounting Hole Diameter (Decimal Inch) | 0.2000 |
| Bar Opening (Degrees) | 100 |
| Handle Movement (Degrees) | 60 |
| Spindle Thread Size | 1/4-20 |
| Spindle Length | 1-3/4 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 1.3000 |
| Finish Coating | Steel |
