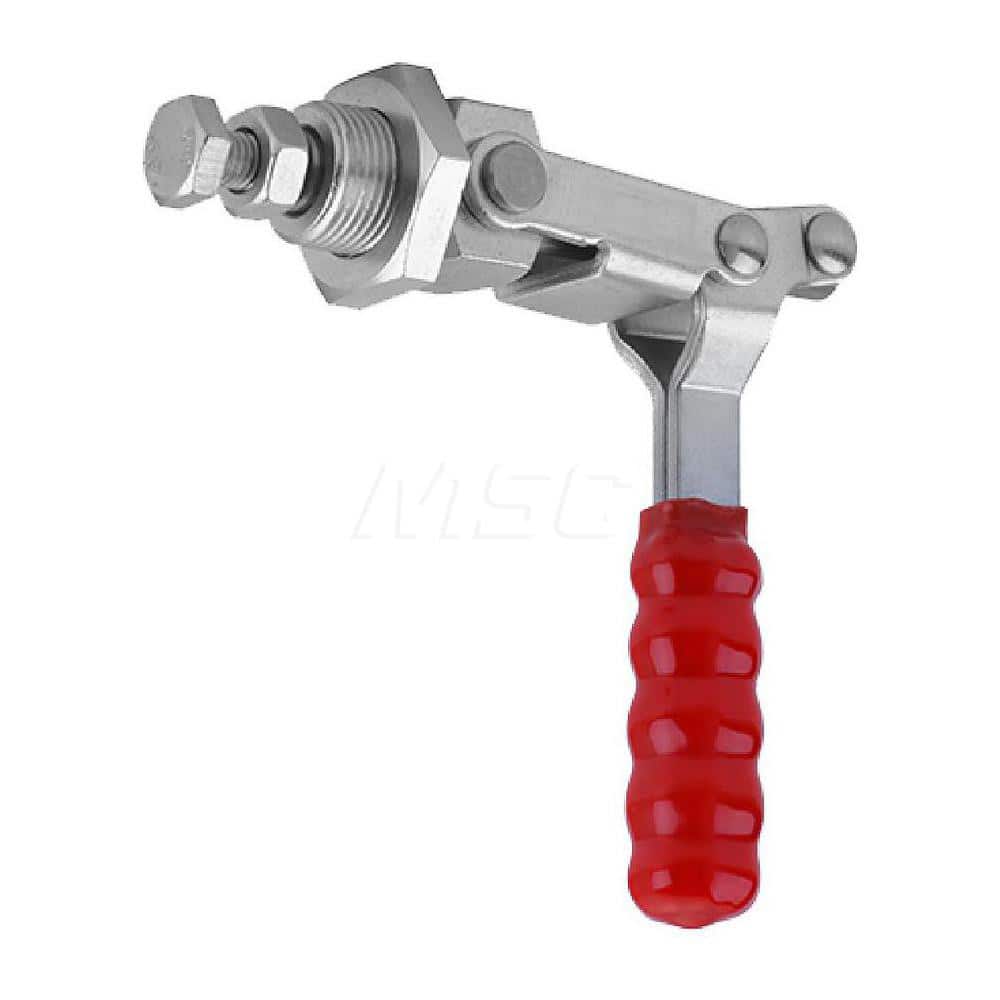

Standard Straight Line Action Clamp: 300 lb Load Capacity, 1.56″ Plunger Travel, Special Base 0.22″ Hole, 0.43″ Plunger Dia, Contoured Plastic Softgrip & Straight Handle
Item #: 14536924
Brand: ShopForce
Model #: 30200
Product Specifications
| Load Capacity (Lb. - 3 Decimals) | 300.00 |
| Load Capacity (N) | 1334.47 |
| Load Capacity | 300.00 |
| Plunger Travel (Decimal Inch) | 1.5600 |
| Plunger Shape | Round |
| Plunger Thread Style | External |
| Plunger Thread Size | 5/16-18 |
| Plunger Centerline Height (Decimal Inch) | 1.3100 |
| Plunger Diameter (Decimal Inch) | 0.4300 |
| Base Style | Special |
| Handle Style | Contoured Plastic Softgrip; Straight |
| Material | Steel |
| Overall Length (Decimal Inch) | 4.2900 |
| Overall Height (Decimal Inch) | 3.8600 |
| Base Length (Decimal Inch) | 1.6300 |
| Base Width (Inch) | 2.7900 |
| Handle Color | Red |
| Length Distance Between Mount Holes (Inch) | 0.7500 |
| Width Distance Between Mount Holes (Decimal Inch) | 1.6300 |
| Mounting Hole Diameter (Decimal Inch) | 0.2200 |
| Jam Nut Hex Size (Decimal Inch) | 1.1810 |
| Jam Nut Thread Size | M6x1.00 |
| Clamp Type | Hold Down |
| Holding Capacity (kg) | 136.08 |
| Holding Capacity (N) | 1334.47 |
| Spindle Length (Decimal Inch) | 2.0000 |
| Holding Capacity (Lb.) | 300.00 |
