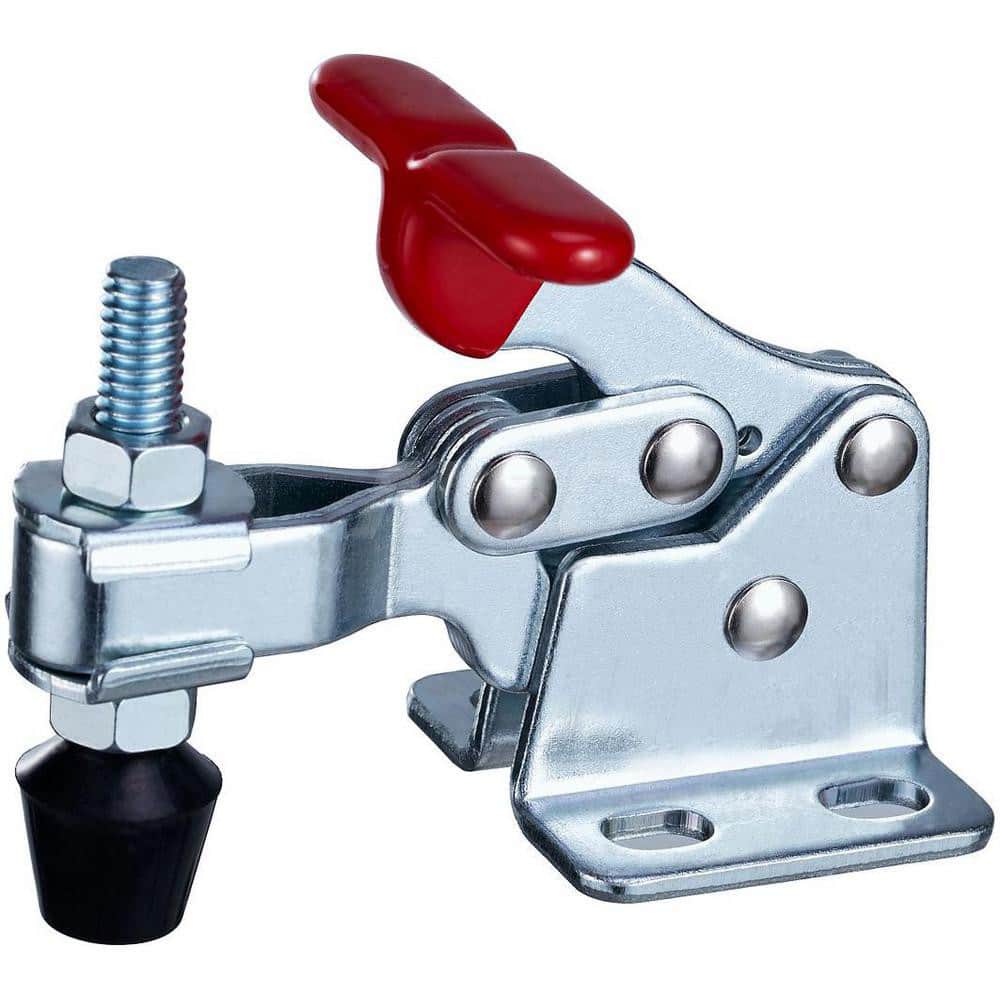

Manual Hold-Down Toggle Clamp: Horizontal, 300 lb Capacity, U-Bar, Flanged Base 170 ° Handle Movement, 90 ° Bar Opening, Plastic
Item #: 14536874
Brand: ShopForce
Model #: 60080
Product Specifications
| Handle Orientation | Horizontal |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (kg) | 136.08 |
| Holding Capacity (N) | 1334.47 |
| Holding Capacity (Lb.) | 300.00 |
| Length Distance Between Mount Holes (Inch) | 0.75 |
| Width Distance Between Mount Holes (Inch) | 3/4 |
| Height Under Bar (Decimal Inch) | 0.8700 |
| Overall Length (Decimal Inch) | 3.6900 |
| Overall Height (Decimal Inch) | 2.3100 |
| Base Width (Inch) | 1.8100 |
| Handle Style | Comfort Grip |
| Material | Plastic |
| Handle Color | Red |
| Mounting Hole Diameter (Decimal Inch) | 0.2800 |
| Bar Opening (Degrees) | 90 |
| Handle Movement (Degrees) | 170 |
| Spindle Thread Size | 5/16-18 |
| Spindle Length | 2-1/2 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 1.9700 |
| Finish Coating | Steel |
