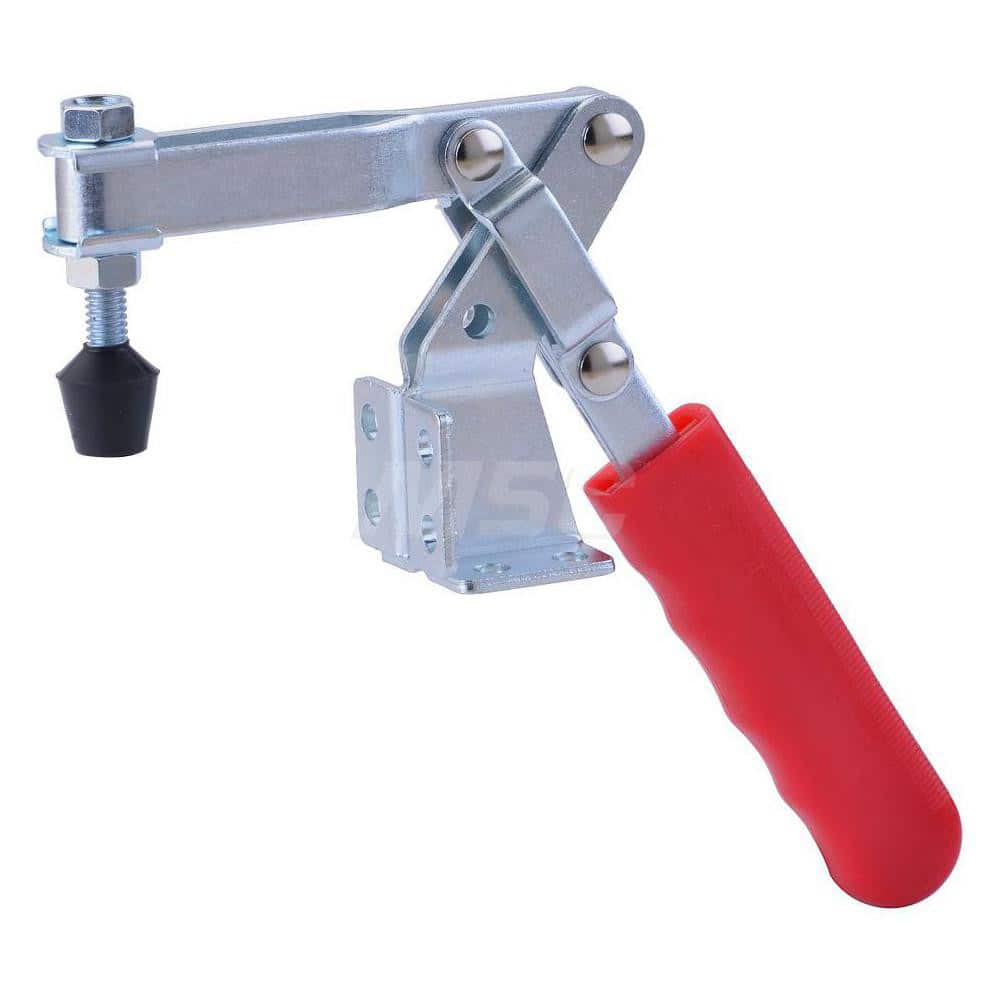

Manual Hold-Down Toggle Clamp: Vertical, 225 lb Capacity, U-Bar, Flanged Base 60 ° Handle Movement, 185 ° Bar Opening, Plastic
Item #: 14530158
Brand: ShopForce
Model #: 50140
Product Specifications
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (kg) | 102.06 |
| Holding Capacity (N) | 1000.85 |
| Holding Capacity (Lb.) | 225.00 |
| Length Distance Between Mount Holes (Inch) | 0.63 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Height Under Bar (Decimal Inch) | 2.7600 |
| Overall Length (Decimal Inch) | 4.4900 |
| Overall Height (Decimal Inch) | 6.6600 |
| Base Width (Inch) | 1-1/2 |
| Handle Style | Comfort Grip |
| Material | Plastic |
| Handle Color | Red |
| Mounting Hole Diameter (Decimal Inch) | 0.2600 |
| Bar Opening (Degrees) | 185 |
| Handle Movement (Degrees) | 60 |
| Spindle Thread Size | 5/16-18 |
| Spindle Length | 2-1/2 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 2.5400 |
| Finish Coating | Steel |
