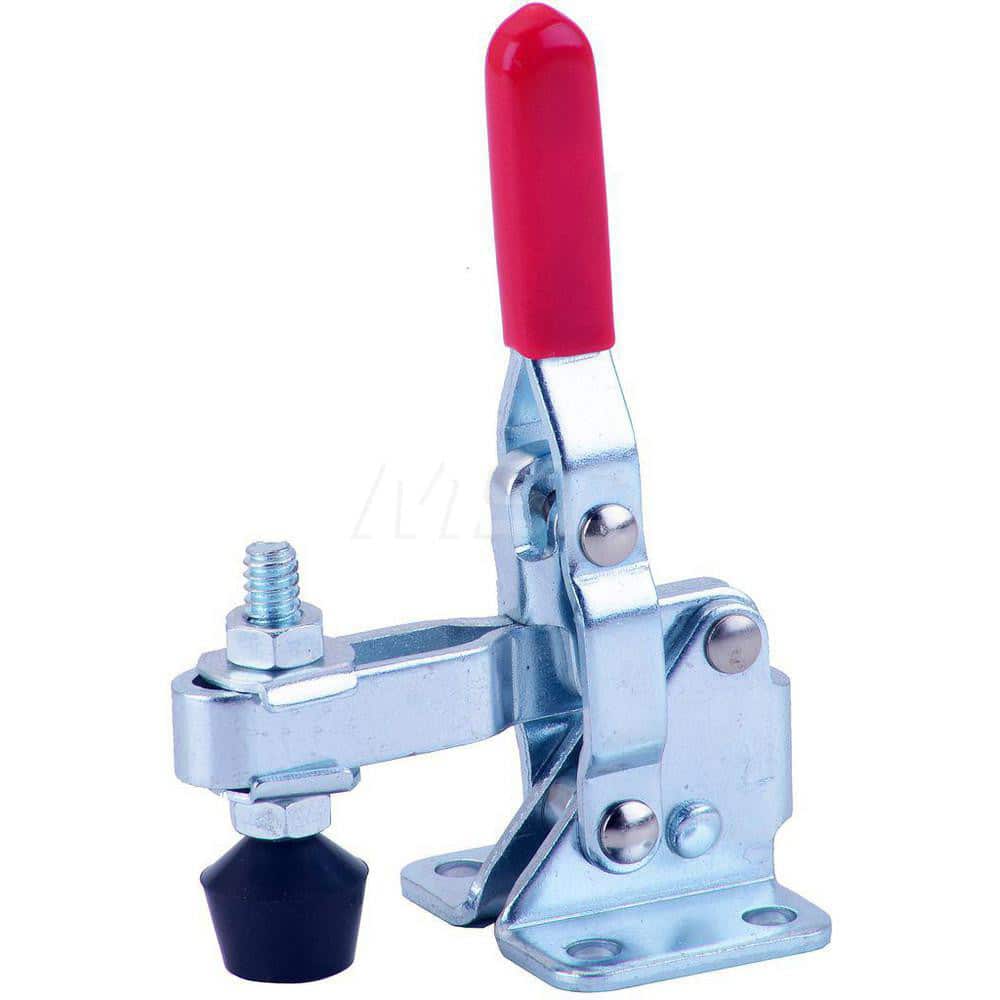

Manual Hold-Down Toggle Clamp: Vertical, 100 lb Capacity, U-Bar, Flanged Base 56 ° Handle Movement, 100 ° Bar Opening, Plastic
Item #: 14529135
Brand: ShopForce
Model #: 50540
Product Specifications
| Handle Orientation | Vertical |
| Bar Style | U-Bar |
| Base Style | Flanged |
| Bar End Type | Closed |
| Holding Capacity (kg) | 45.36 |
| Holding Capacity (N) | 444.82 |
| Holding Capacity (Lb.) | 100.00 |
| Length Distance Between Mount Holes (Inch) | 0.63 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.6300 |
| Height Under Bar (Decimal Inch) | 0.7400 |
| Overall Length (Decimal Inch) | 2.1300 |
| Overall Height (Decimal Inch) | 3.0600 |
| Base Length (Inch) | 1 |
| Base Width (Inch) | 1.3100 |
| Handle Style | Comfort Grip |
| Material | Plastic |
| Handle Color | Red |
| Mounting Hole Diameter (Decimal Inch) | 0.1700 |
| Bar Opening (Degrees) | 100 |
| Handle Movement (Degrees) | 56 |
| Spindle Thread Size | 3/16-24 |
| Spindle Length | 1-3/8 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 1.0300 |
| Finish Coating | Steel |
