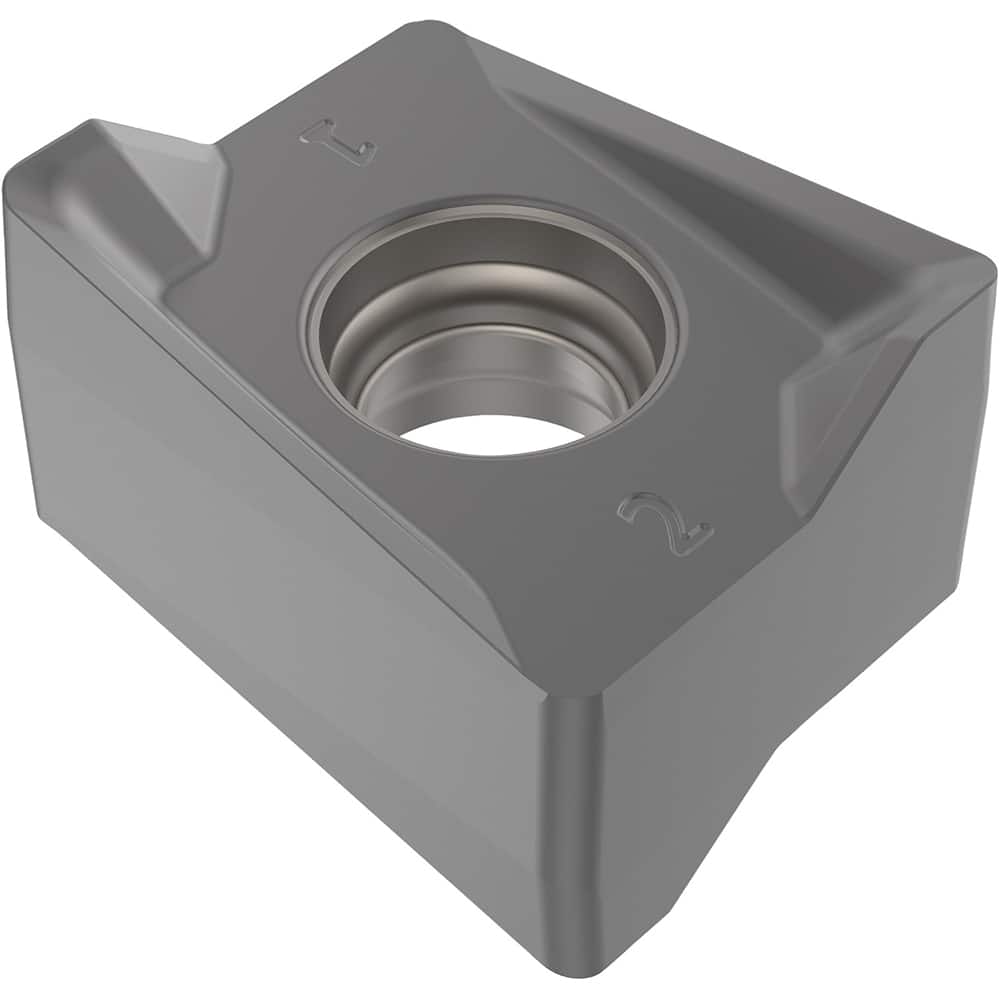

LN14-24763-M04 420470 Carbide Milling Insert TiCN/Al2O3 Finish, 0.551″ Long x 7.72mm Thick x 11mm Wide
Item #: 14420038
Brand: Seco
Model #: 02951222
Product Specifications
| Insert Style | LN |
| Insert Size | 1424763 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | 420470 |
| Inscribed Circle (mm) | 11.00 |
| Corner Radius (mm) | 0.80 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Relief Angle | 0.00 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.60 |
| Maximum Depth of Cut (mm) | 13.20 |
| Rake | Negative |
| Ansi Code | LN14-24763-M04 |
| Iso Code | RI-LN14-24763-M04 |
| Rake Angle | 26.00 |
| Cutting Edge Style | T-Land; Honed |
| Manufacturers Catalog Number | LN14-24763-M04 |
| Cutter Series Compatibility | R220 |
| Chip Breaker | M04 |
| Shape | Rectangle |
| Thickness (mm) | 7.72 |
| Coating Classification | CVD |
| Coating/Finish | TiCN; Al2O3 |
| Included Angle Degree | 90 |
| Width (Mm - 2 Decimals) | 11.00 |
| Length (Decimal Inch - 4 Decimals) | 0.5510 |
