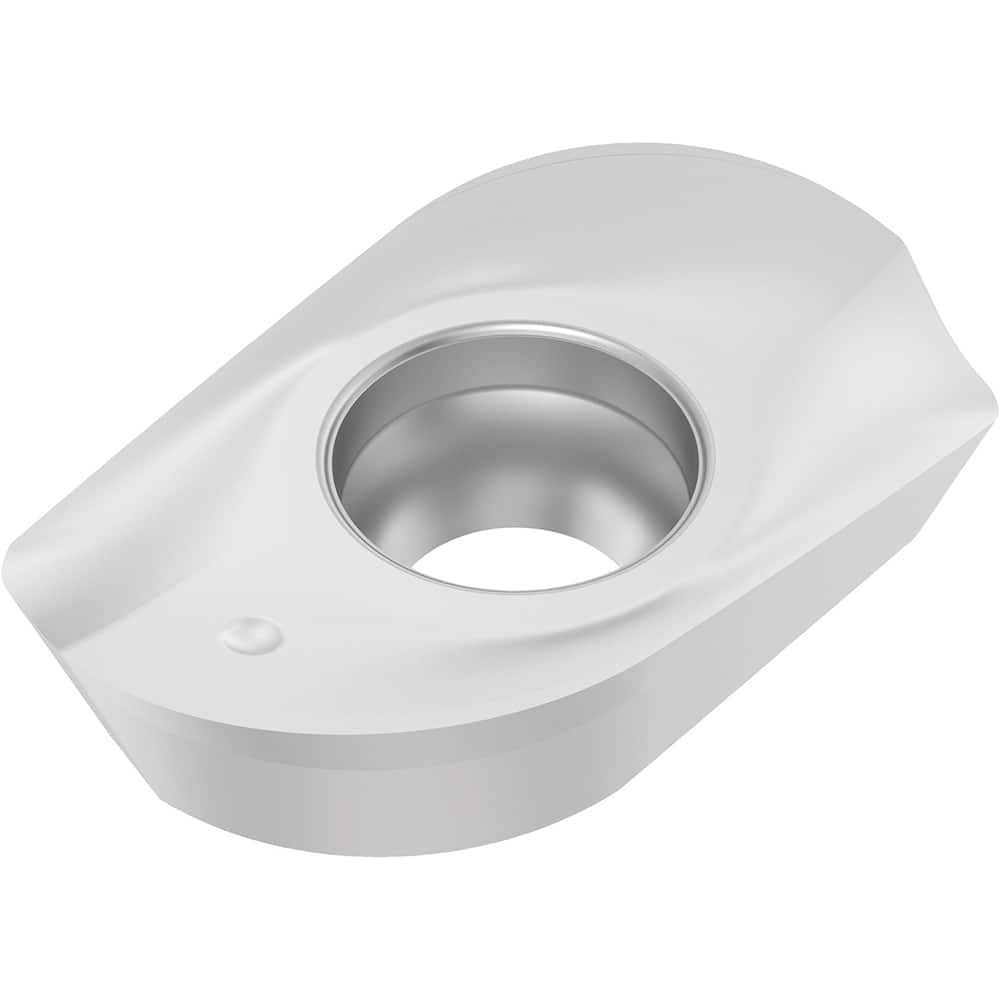

XOEX160563R-M09 Carbide Milling Insert TiAlN/NbN Finish, 0.579″ Long x 0.21″ Thick x 0.402″ Wide
Item #: 14420020
Brand: Seco
Model #: 10000069
Product Specifications
| Insert Style | XOEX |
| Insert Size | 160563 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | MS2050 |
| Inscribed Circle (Decimal Inch) | 0.4020 |
| Thickness Range (Decimal Inch) | 0.2000 to 0.2200 |
| Corner Radius (Decimal Inch) | 0.2480 |
| Inscribed Circle Range (Decimal Inch) | 0.4000 to 0.5000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Right Hand |
| Relief Angle | 15.20 |
| Hole Diameter (Decimal Inch) | 0.1770 |
| Maximum Depth of Cut (Decimal Inch) | 0.5790 |
| Rake | Positive |
| Ansi Code | XOEX160563R-M09 |
| Iso Code | XOEX160563R-M09 |
| Rake Angle | 14.00 |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | XOEX160563R-M09 |
| Cutter Series Compatibility | R217; R220.69 |
| Chip Breaker | M09 |
| Shape | Parallelogram |
| Coating Classification | PVD |
| Coating/Finish | NbN; TiAlN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.4020 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2100 |
| Length (Decimal Inch - 4 Decimals) | 0.5790 |
