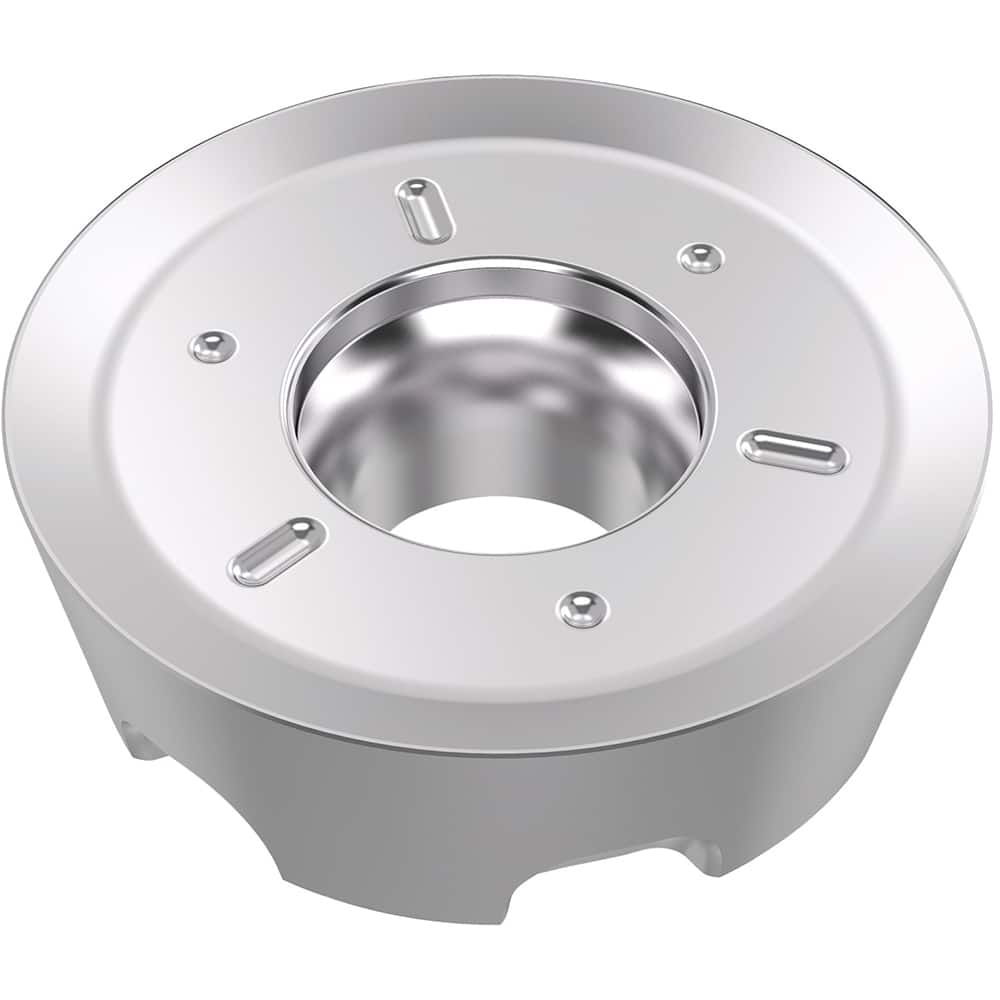

RPHT190600T-6-M13 Carbide Milling Insert TiAlN/NbN Finish, 3/4″ Long x 0.252″ Thick x 3/4″ Wide
Item #: 14417331
Brand: Seco
Model #: 03252434
Product Specifications
| Insert Style | RPHT |
| Insert Size | 190600 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | MS2050 |
| Inscribed Circle (Decimal Inch) | 0.7500 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Decimal Inch) | 0.3750 |
| Inscribed Circle Range (Decimal Inch) | 0.7000 to 1.0000 |
| Length Range (Decimal Inch) | 0.7000 to 0.9000 |
| Insert Hand | Neutral |
| Relief Angle | 11.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Rake | Positive |
| Ansi Code | RPHT190600T-6-M13 |
| Iso Code | RPHT190600T-6-M13 |
| Cutting Edge Style | T-Land; Honed |
| Manufacturers Catalog Number | RPHT190600T-6-M13 |
| Cutter Series Compatibility | R220.29 |
| Chip Breaker | M13 |
| Shape | Round |
| Coating Classification | PVD |
| Coating/Finish | NbN; TiAlN |
| Included Angle Degree | 360 |
| Width (Decimal Inch - 4 Decimals) | 0.7500 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2520 |
| Length (Decimal Inch - 4 Decimals) | 0.7500 |
