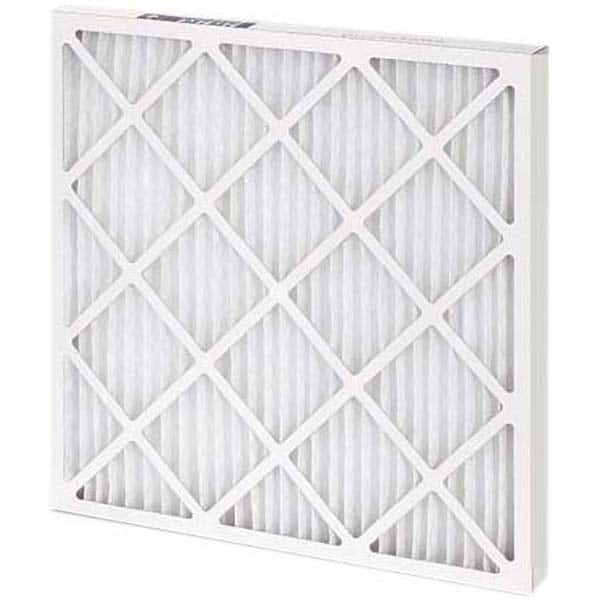

Pleated Air Filter: 24 x 25 x 4″, MERV 8, Wire-Backed Pleated Synthetic, Beverage Board Frame, 2,604 CFM, Use with Any Unit
Item #: 14281281
Brand: PRO-SOURCE
Model #: PRO1016866
Product Specifications
| Filter Type | Wire-Backed Pleated |
| Pleat Type | Wire-Backed Pleated |
| Media Material | Synthetic |
| Frame Material | Beverage Board |
| Air Flow | 2604 CFM |
| Nominal Depth (Inch) | 4 |
| Nominal Depth | 4 in |
| Nominal Width (Inch) | 25 |
| Nominal Width | 25 in |
| Nominal Height | 24 in |
| Nominal Height (Inch) | 24 |
| Initial Resistance | 0.09 (at 375 FPM);0.14 (at 500 FPM);0.21 (at 625 FPM) in wg |
| Integrated Frame | Yes |
| Actual Depth (Inch) | 3-3/4 |
| Actual Depth | 3.75 in |
| Maximum Air Flow (FPM) | 625 |
| Actual Width (Inch) | 24-1/2 |
| Actual Height (Inch) | 23-1/2 |
| Actual Width | 24.5 in |
| Actual Height | 23.5 in |
| For Use With | Any Unit |
| Standards | UL 900 |
| Final Resistance at FPM (Inches w.g.) | 1 |
| Capacity | Standard |
| Merv Rating | 8 |
| Maximum Temperature (F) ( - 0 Decimals) | 150 |
