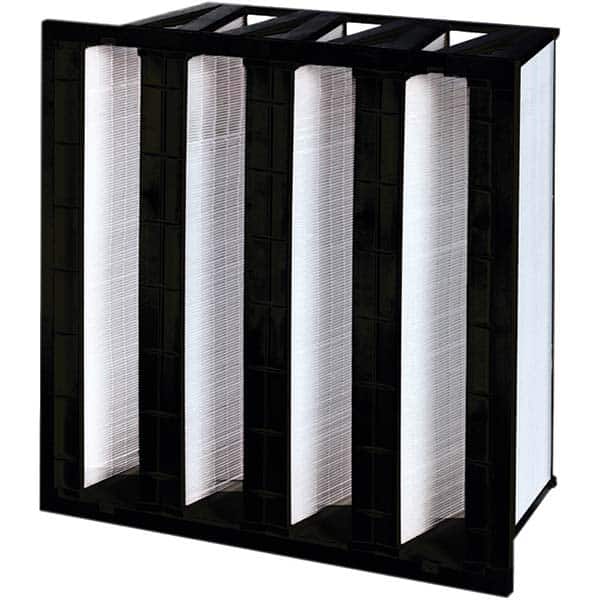

Pleated Air Filter: 20 x 20 x 12″, MERV 16, V-Bank Mini-Pleat Microfiberglass, Plastic Frame, 1,736 CFM
Item #: 14279228
Brand: PRO-SOURCE
Model #: PRO40345-P
Product Specifications
| Filter Type | V-Bank Mini-Pleat |
| Pleat Type | V-Bank Mini-Pleat |
| Media Material | Microfiberglass |
| Frame Material | Plastic |
| Air Flow | 1736 CFM |
| Nominal Depth (Inch) | 12 |
| Nominal Depth | 12 in |
| Nominal Width (Inch) | 20 |
| Nominal Width | 20 in |
| Nominal Height | 20 in |
| Nominal Height (Inch) | 20 |
| Initial Resistance | 0.41 (at 375 FPM);0.57 (at 500 FPM);0.75 (at 625 FPM) in wg |
| Integrated Frame | Yes |
| Actual Depth (Inch) | 11-1/2 |
| Actual Depth | 11.5 in |
| Maximum Air Flow (FPM) | 750 |
| Actual Width | 19.38 in |
| Actual Height | 19.38 in |
| Standards | UL 900 |
| Final Resistance at FPM (Inches w.g.) | 2 |
| Merv Rating | 16 |
| Maximum Temperature (F) ( - 0 Decimals) | 150 |
