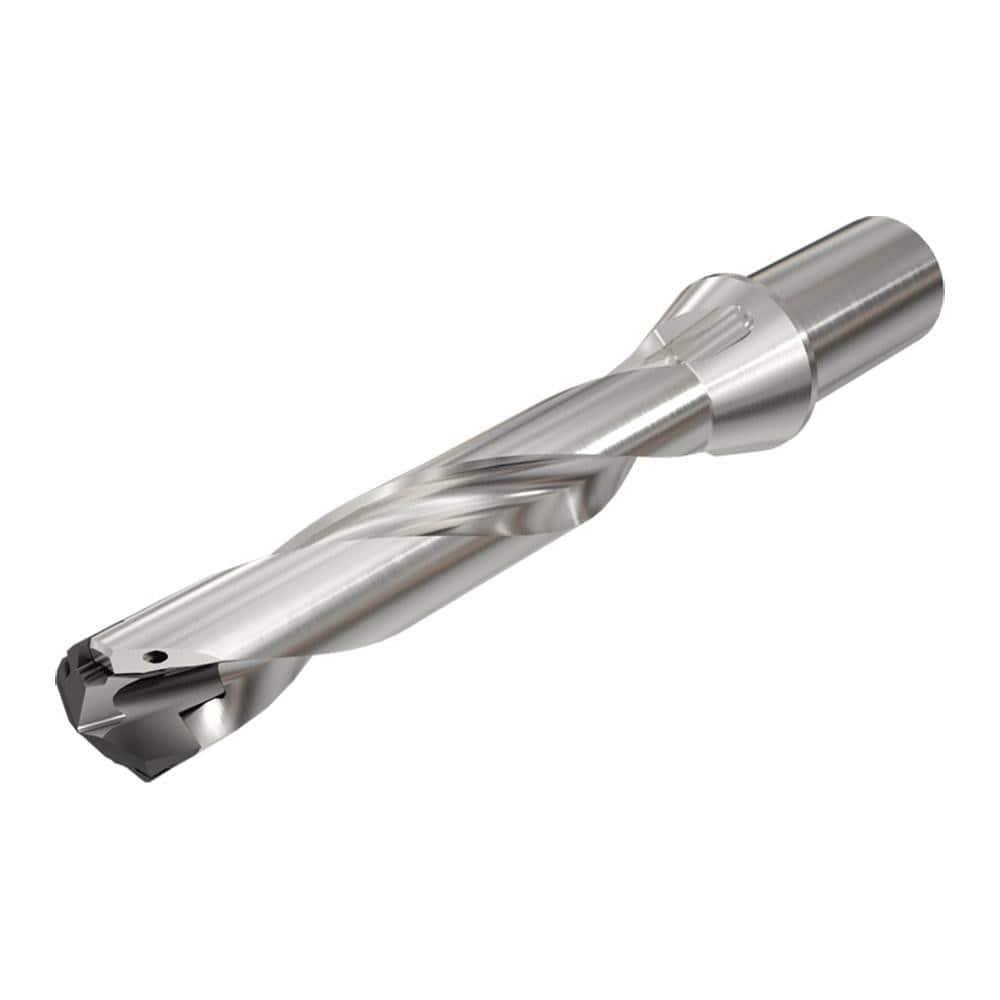

Replaceable Tip Drill: 1.142 to 1.177'' Drill Dia, 5.92″ Max Depth, 1.25'' Straight-Cylindrical Shank Uses ICP Inserts, 9.87″ OAL, Through Coolant
Item #: 13626601
Brand: Iscar
Model #: 3203141
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.1420 |
| Maximum Drill Diameter (Decimal Inch) | 1.1770 |
| Maximum Drill Depth (Decimal Inch) | 5.9200 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 4.5000 to 6.0000 |
| Compatible Insert Style | ICP |
| Compatible Insert Size Code | 29 |
| Overall Length (mm) | 9.87 |
| Overall Length (Decimal Inch) | 9.8700 |
| Series | DCN |
| Toolholder Style | DCN |
| Flute Length (Decimal Inch) | 5.9200 |
| Body Length (Decimal Inch) | 7.5140 |
| Shank Length (Decimal Inch) | 2.3600 |
| Tool Application | Drilling |
| Tool Performance | High Performance |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel; Superalloy & Titanium |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Coolant Through | Yes |
