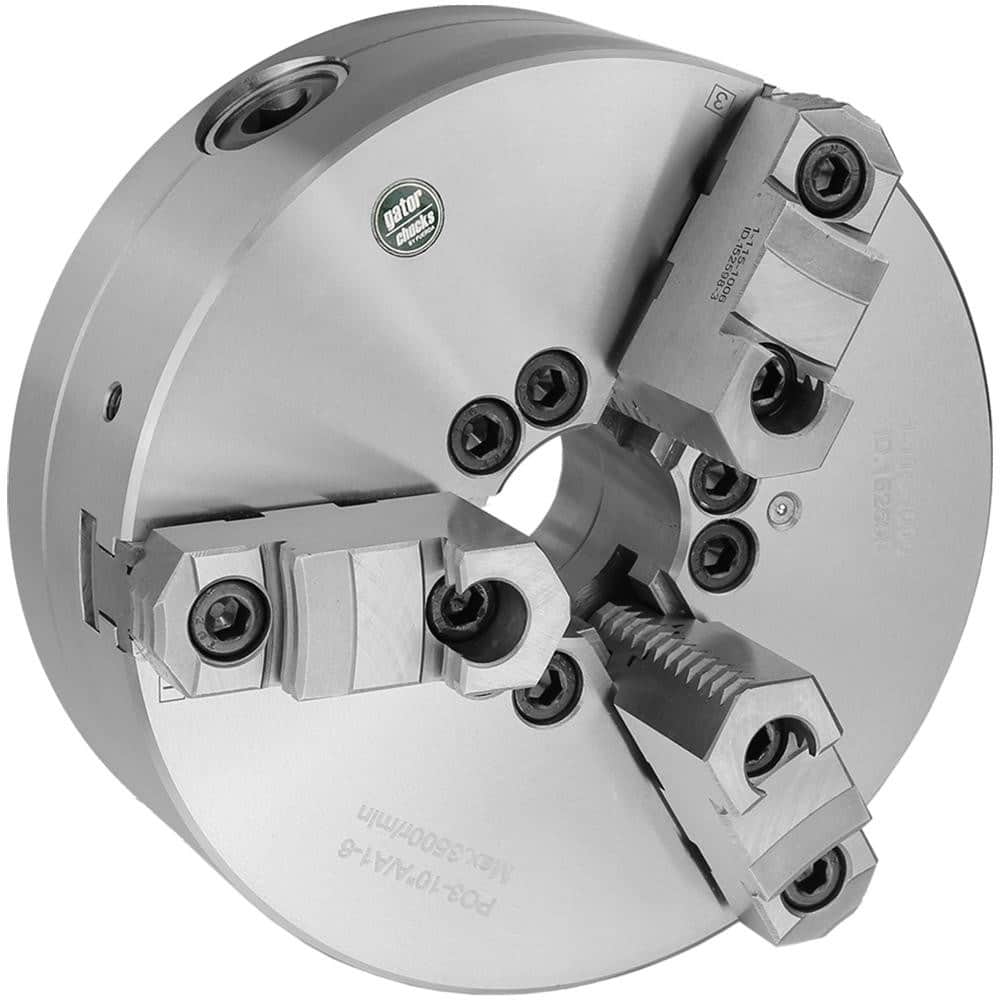

Self-Centering Manual Lathe Chuck: 3-Jaw, 8″ Dia Two-Piece Jaws, Direct & A1-6 Mount, 4,000 Max RPM
Item #: 13546452
Brand: Gator Lathe Chucks
Model #: 1-115-0806
Product Specifications
| Chuck Type | Self-Centering |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 2.1653 |
| Chuck Diameter (Decimal Inch) | 8.0000 |
| Chuck Diameter (Inch) | 8 |
| Minimum Jaw Capacity (Inch) | 0.1600 |
| Minimum Jaw Capacity (mm) | 0.16 |
| Maximum Jaw Capacity (mm) | 7.87 |
| Maximum Jaw Capacity (Inch) | 7.8700 |
| Jaw Height (Decimal Inch) | 1.8310 |
| Maximum Rpm | 4000 |
| Mount Type | A1-6; Direct |
| TIR Repeatability (Decimal Inch) | 0.0016 |
| Number Of Jaws | 3 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Chuck Mounting Bolts; Chuck Wrench; Hex Keys |
