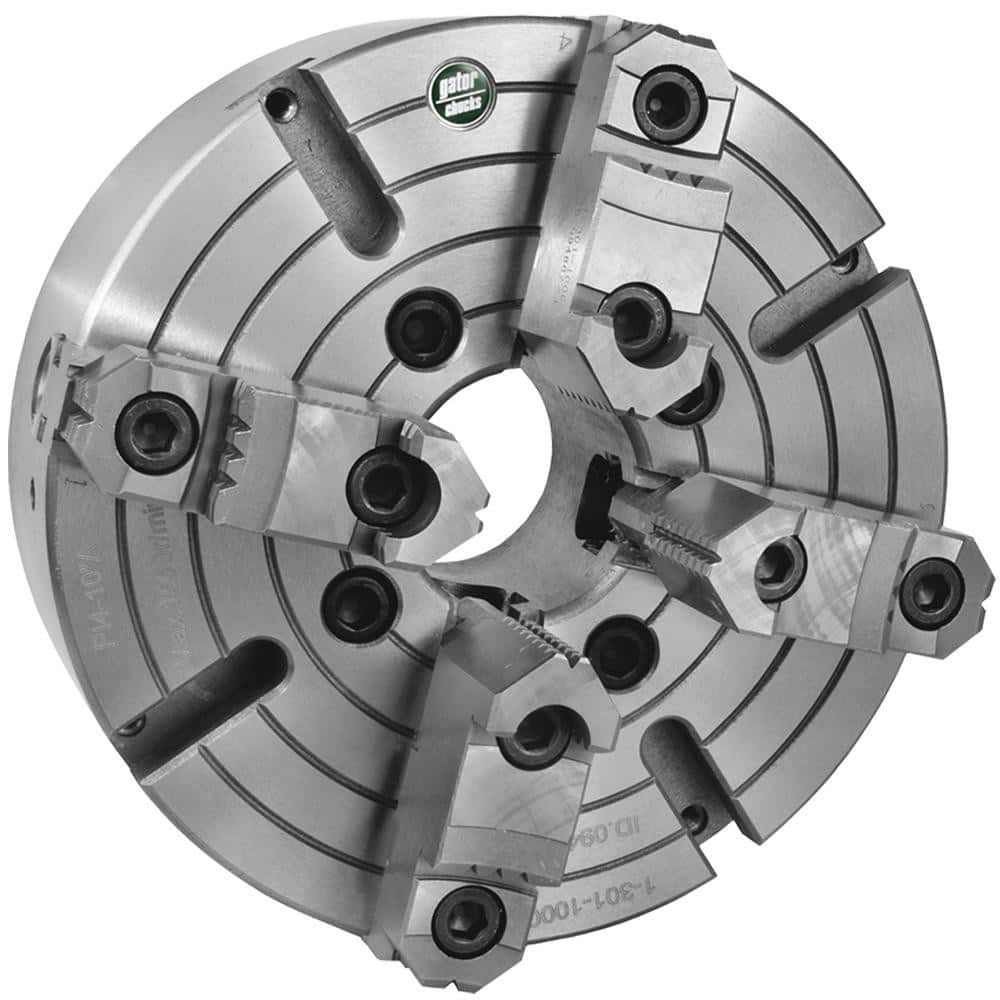

Independent Manual Lathe Chuck: 4-Jaw, 16″ Dia Two-Piece Jaws, Direct Mount, 800 Max RPM
Item #: 13542493
Brand: Gator Lathe Chucks
Model #: 1-311-1606
Product Specifications
| Chuck Type | Independent |
| Material | Semi-Steel; Cast Iron |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 3.9370 |
| Chuck Diameter (Decimal Inch) | 16.0000 |
| Chuck Diameter (Inch) | 16 |
| Minimum Jaw Capacity (Inch) | 0.7870 |
| Minimum Jaw Capacity (mm) | 0.78 |
| Maximum Jaw Capacity (mm) | 15.75 |
| Maximum Jaw Capacity (Inch) | 15.7500 |
| Jaw Height (Decimal Inch) | 2.8465 |
| Maximum Rpm | 800 |
| Mount Type | Direct |
| TIR Repeatability (Decimal Inch) | 0.0024 |
| Number Of Jaws | 4 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Chuck Mounting Bolts; Eye Bolts; Chuck Wrench; Hex Keys |
