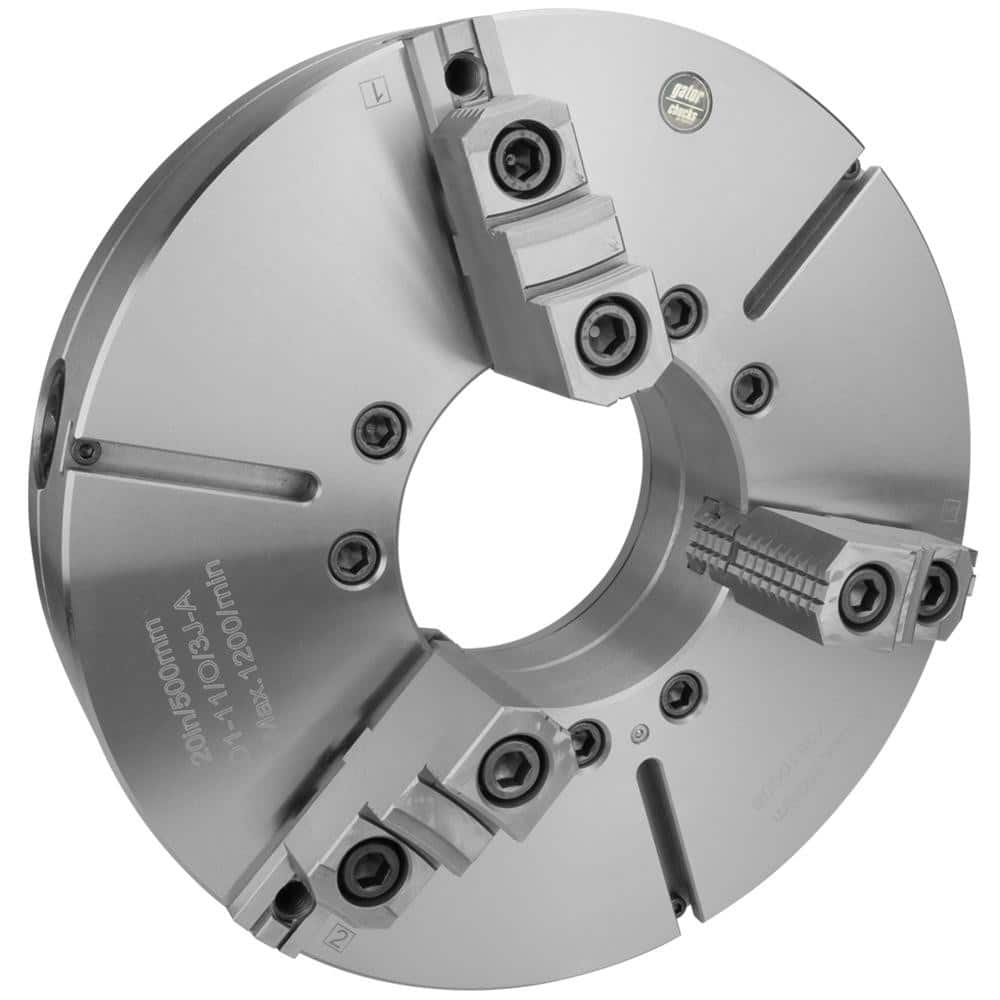

Self-Centering Manual Lathe Chuck: 3-Jaw, 16″ Dia Two-Piece Jaws, Direct & D1-8 Mount, 2,000 Max RPM
Item #: 13542311
Brand: Gator Lathe Chucks
Model #: 1-125-1608
Product Specifications
| Chuck Type | Self-Centering |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 5.3543 |
| Chuck Diameter (Decimal Inch) | 16.0000 |
| Chuck Diameter (Inch) | 16 |
| Minimum Jaw Capacity (Inch) | 0.3900 |
| Minimum Jaw Capacity (mm) | 0.39 |
| Maximum Jaw Capacity (mm) | 15.75 |
| Maximum Jaw Capacity (Inch) | 15.7500 |
| Jaw Height (Decimal Inch) | 2.8540 |
| Maximum Rpm | 2000 |
| Mount Type | D1-8; Direct |
| TIR Repeatability (Decimal Inch) | 0.0024 |
| Number Of Jaws | 3 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Camlock Studs; Eye Bolts; Chuck Wrench; Hex Keys |
