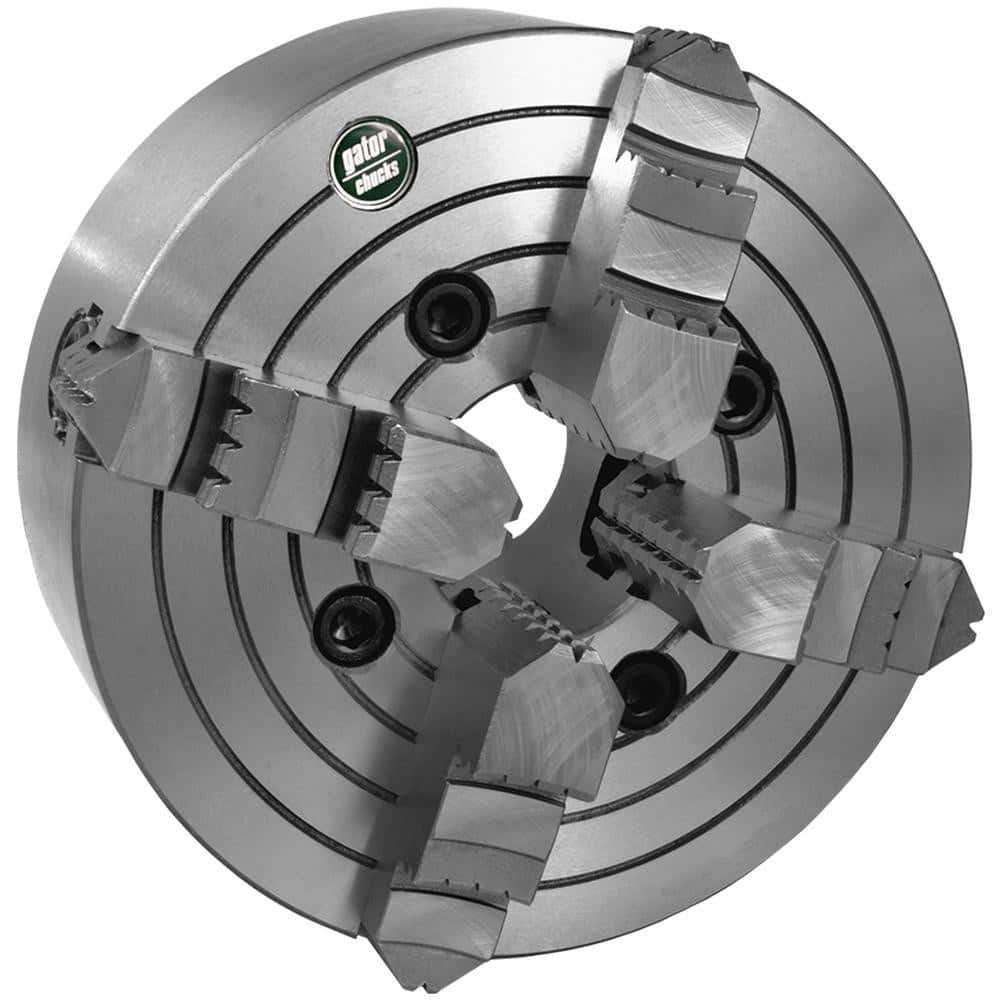

Independent Manual Lathe Chuck: 4-Jaw, 8″ Dia Hard & Solid Jaws, Plain Back Mount, 1,800 Max RPM
Item #: 13539945
Brand: Gator Lathe Chucks
Model #: 1-302-0800
Product Specifications
| Chuck Type | Independent |
| Material | Semi-Steel; Cast Iron |
| Jaw Type | Hard; Solid |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 2.2050 |
| Chuck Diameter (Decimal Inch) | 8.0000 |
| Chuck Diameter (Inch) | 8 |
| Minimum Jaw Capacity (Inch) | 0.3940 |
| Minimum Jaw Capacity (mm) | 0.39 |
| Maximum Jaw Capacity (mm) | 7.87 |
| Maximum Jaw Capacity (Inch) | 7.8700 |
| Jaw Height (Decimal Inch) | 1.3780 |
| Maximum Rpm | 1800 |
| Mount Type | Plain Back |
| TIR Repeatability (Decimal Inch) | 0.0016 |
| Number Of Jaws | 4 |
| Contents | Adapter Mounting Bolts; (1) Set of Hard Solid Reversible Jaws; Chuck Wrench; Hex Keys |
