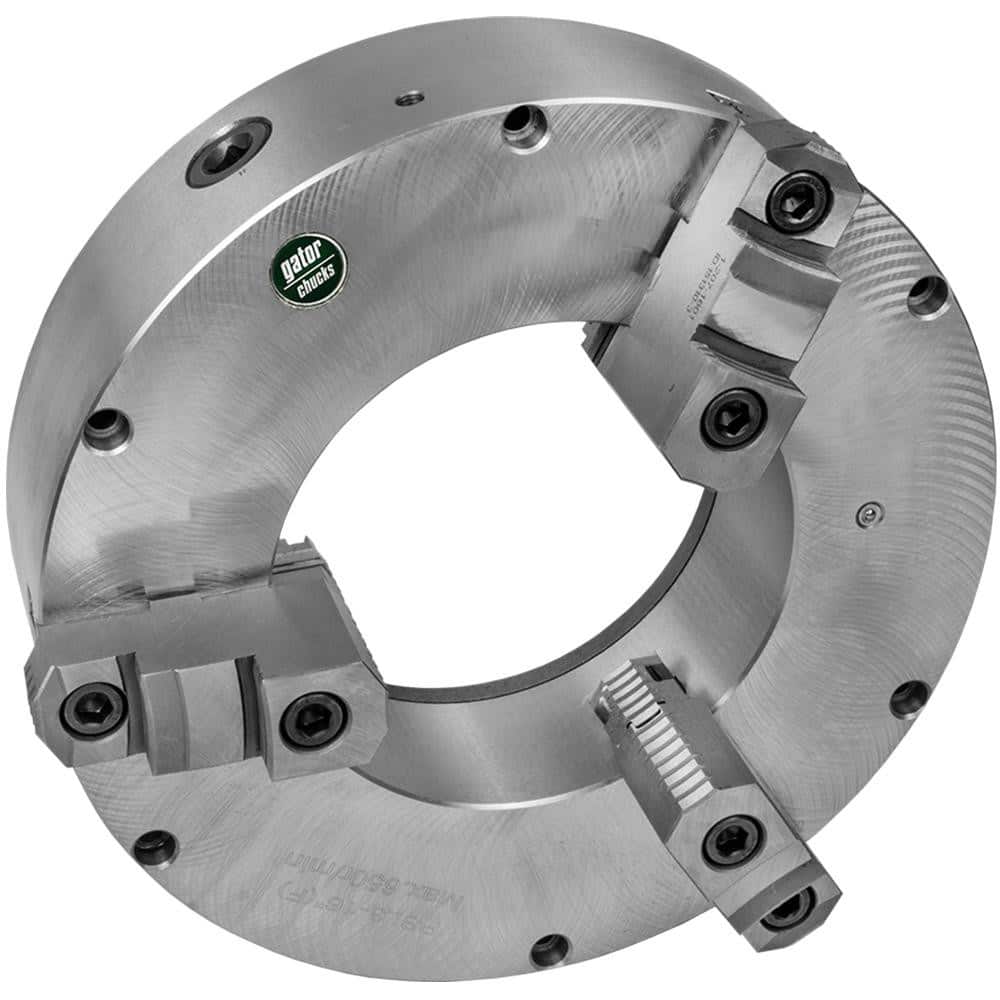

Self-Centering Manual Lathe Chuck: 3-Jaw, 20″ Dia Two-Piece Jaws, Front Mount, 350 Max RPM
Item #: 13539838
Brand: Gator Lathe Chucks
Model #: 1-207-2001
Product Specifications
| Chuck Type | Self-Centering |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 12.6000 |
| Chuck Diameter (Decimal Inch) | 20.0000 |
| Chuck Diameter (Inch) | 20 |
| Minimum Jaw Capacity (Inch) | 9.8400 |
| Minimum Jaw Capacity (mm) | 9.84 |
| Maximum Jaw Capacity (mm) | 19.69 |
| Maximum Jaw Capacity (Inch) | 19.6900 |
| Jaw Height (Decimal Inch) | 3.5039 |
| Maximum Rpm | 350 |
| Mount Type | Front |
| TIR Repeatability (Decimal Inch) | 0.0040 |
| Number Of Jaws | 3 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Chuck Mounting Bolts; Eye Bolts; Chuck Wrench; Hex Keys |
