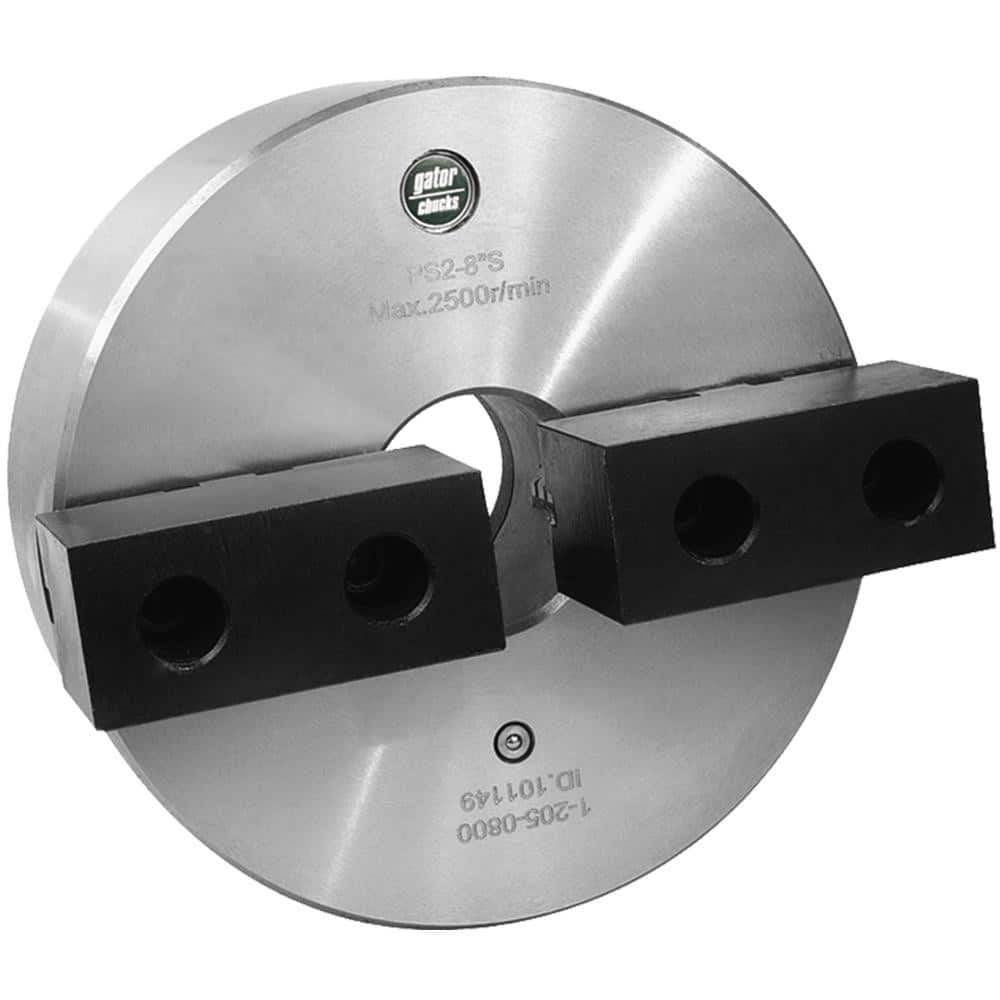

Self-Centering Manual Lathe Chuck: 2-Jaw, 8″ Dia Two-Piece Jaws, Plain Back Mount, 2,500 Max RPM
Item #: 13536016
Brand: Gator Lathe Chucks
Model #: 1-205-0800
Product Specifications
| Chuck Type | Self-Centering |
| Material | Semi-Steel; Cast Iron |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 2.1654 |
| Chuck Diameter (Decimal Inch) | 8.0000 |
| Chuck Diameter (Inch) | 8 |
| Minimum Jaw Capacity (Inch) | 0.1600 |
| Minimum Jaw Capacity (mm) | 0.16 |
| Maximum Jaw Capacity (mm) | 7.87 |
| Maximum Jaw Capacity (Inch) | 7.8700 |
| Jaw Height (Decimal Inch) | 1.7910 |
| Maximum Rpm | 2500 |
| Mount Type | Plain Back |
| TIR Repeatability (Decimal Inch) | 0.0016 |
| Number Of Jaws | 2 |
| Contents | Adapter Mounting Bolts; Chuck Wrench; (1) Set of Master & Soft Top Jaws; Hex Keys |
