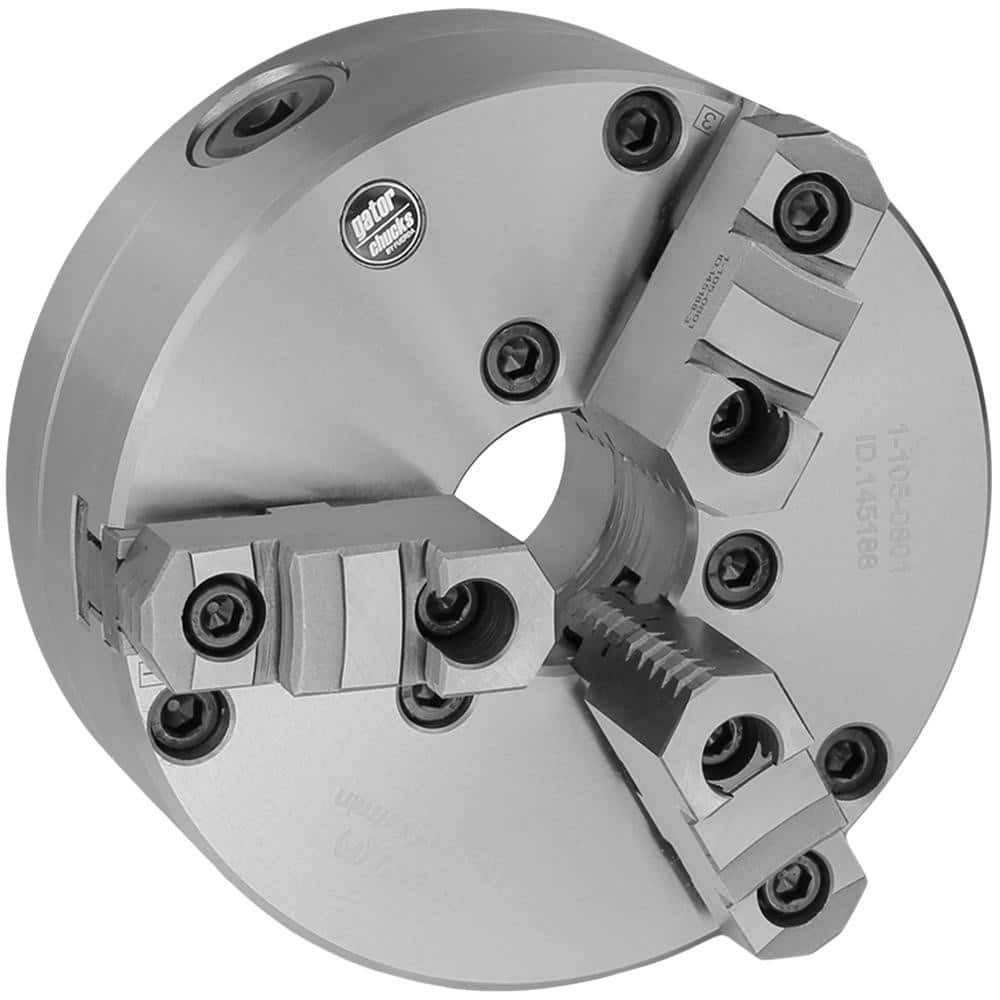

Self-Centering Manual Lathe Chuck: 3-Jaw, 5″ Dia Two-Piece Jaws, Front Mount, 4,800 Max RPM
Item #: 13536008
Brand: Gator Lathe Chucks
Model #: 1-105-0501
Product Specifications
| Chuck Type | Self-Centering |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 1.2598 |
| Chuck Diameter (Decimal Inch) | 5.0000 |
| Chuck Diameter (Inch) | 5 |
| Minimum Jaw Capacity (Inch) | 0.1200 |
| Minimum Jaw Capacity (mm) | 0.12 |
| Maximum Jaw Capacity (mm) | 4.92 |
| Maximum Jaw Capacity (Inch) | 4.9200 |
| Jaw Height (Decimal Inch) | 1.5750 |
| Maximum Rpm | 4800 |
| Mount Type | Front |
| TIR Repeatability (Decimal Inch) | 0.0012 |
| Number Of Jaws | 3 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Adapter Mounting Bolts; Chuck Wrench; Hex Keys |
