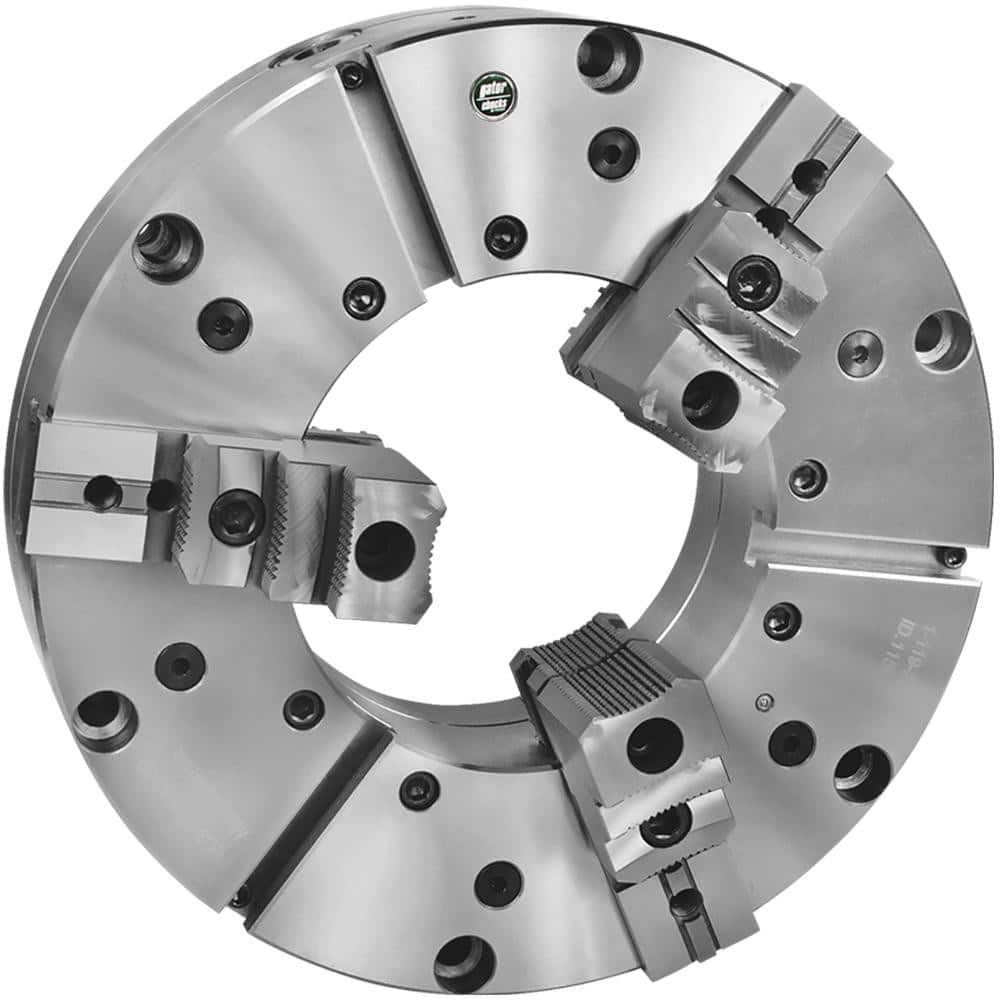

Self-Centering Manual Lathe Chuck: 3-Jaw, 20″ Dia Two-Piece Jaws, Direct Mount, 1,000 Max RPM
Item #: 13535927
Brand: Gator Lathe Chucks
Model #: 1-119-2015
Product Specifications
| Chuck Type | Self-Centering |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Inch) | 8 |
| Through-Hole Diameter (Decimal Inch) | 8.0000 |
| Chuck Diameter (Decimal Inch) | 20.0000 |
| Chuck Diameter (Inch) | 20 |
| Minimum Jaw Capacity (Inch) | 1.7700 |
| Minimum Jaw Capacity (mm) | 1.77 |
| Maximum Jaw Capacity (mm) | 19.68 |
| Maximum Jaw Capacity (Inch) | 19.6800 |
| Jaw Height (Decimal Inch) | 3.4250 |
| Maximum Rpm | 1000 |
| Mount Type | Direct |
| TIR Repeatability (Decimal Inch) | 0.0040 |
| Number Of Jaws | 3 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Chuck Mounting Bolts; Eye Bolts; Chuck Wrench; Hex Keys |
