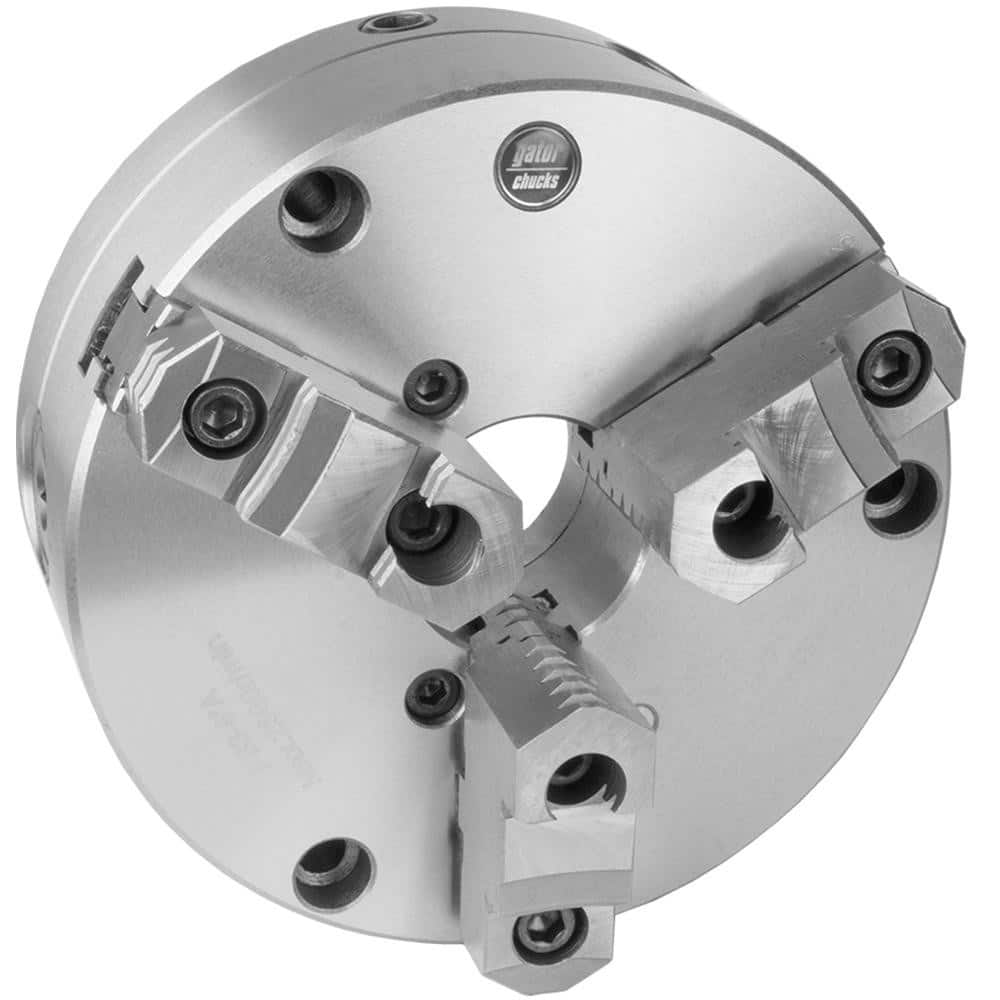

Self-Centering Manual Lathe Chuck: 3-Jaw, 6″ Dia Two-Piece Jaws, Front Mount, Adjustable, 3,000 Max RPM
Item #: 13535828
Brand: Gator Lathe Chucks
Model #: 1-151-0600
Product Specifications
| Chuck Type | Self-Centering |
| Material | Semi-Steel; Cast Iron |
| Jaw Type | Two-Piece |
| Adjustable | Yes |
| Through-Hole Diameter (Decimal Inch) | 1.6540 |
| Chuck Diameter (Decimal Inch) | 6.0000 |
| Chuck Diameter (Inch) | 6 |
| Minimum Jaw Capacity (Inch) | 0.1180 |
| Minimum Jaw Capacity (mm) | 0.11 |
| Maximum Jaw Capacity (mm) | 6.30 |
| Maximum Jaw Capacity (Inch) | 6.3000 |
| Jaw Height (Decimal Inch) | 1.7100 |
| Maximum Rpm | 3000 |
| Mount Type | Front |
| TIR Repeatability (Decimal Inch) | 0.0004 |
| Number Of Jaws | 3 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Adapter Mounting Bolts; Fine Adjustment Screws; Chuck Wrench; Hex Keys |
