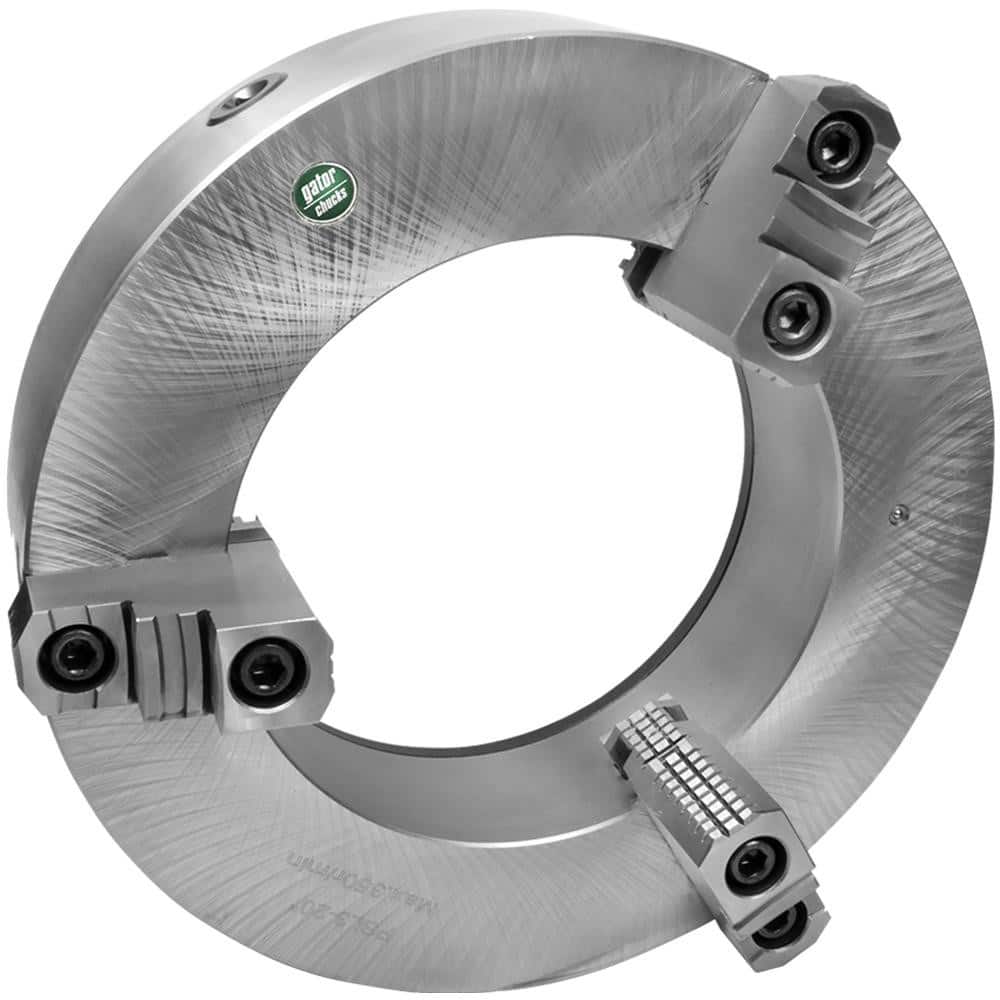

Self-Centering Manual Lathe Chuck: 3-Jaw, 26″ Dia Two-Piece Jaws, Plain Back Mount, 250 Max RPM
Item #: 13535299
Brand: Gator Lathe Chucks
Model #: 1-207-2600
Product Specifications
| Chuck Type | Self-Centering |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 15.9800 |
| Chuck Diameter (Decimal Inch) | 26.0000 |
| Chuck Diameter (Inch) | 26 |
| Minimum Jaw Capacity (Inch) | 14.1800 |
| Minimum Jaw Capacity (mm) | 14.18 |
| Maximum Jaw Capacity (mm) | 10.00 |
| Maximum Jaw Capacity (Inch) | 25 |
| Jaw Height (Decimal Inch) | 3.4763 |
| Maximum Rpm | 250 |
| Mount Type | Plain Back |
| TIR Repeatability (Decimal Inch) | 0.0040 |
| Number Of Jaws | 3 |
| Contents | (1) Set of Master & Hard Top Reversible Jaws; Adapter Mounting Bolts; Eye Bolts; Chuck Wrench; Hex Keys |
