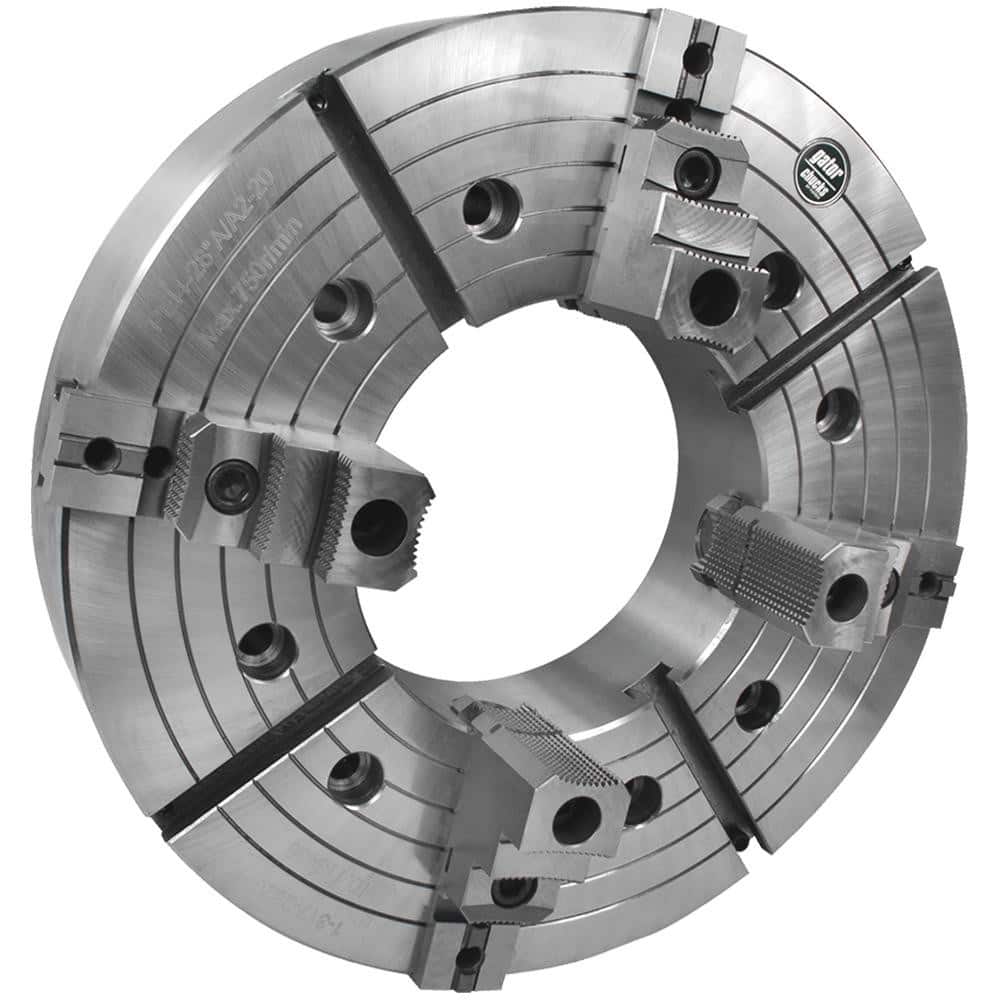

Independent Manual Lathe Chuck: 4-Jaw, 28″ Dia Two-Piece Jaws, Direct Mount, 750 Max RPM
Item #: 13534375
Brand: Gator Lathe Chucks
Model #: 1-317-2820
Product Specifications
| Chuck Type | Independent |
| Material | Forged Steel |
| Jaw Type | Two-Piece |
| Adjustable | No |
| Through-Hole Diameter (Decimal Inch) | 12.5500 |
| Chuck Diameter (Decimal Inch) | 28.0000 |
| Chuck Diameter (Inch) | 28 |
| Minimum Jaw Capacity (Inch) | 7.0900 |
| Minimum Jaw Capacity (mm) | 7.09 |
| Maximum Jaw Capacity (mm) | 27.95 |
| Maximum Jaw Capacity (Inch) | 27.9500 |
| Jaw Height (Decimal Inch) | 3.5710 |
| Maximum Rpm | 750 |
| Mount Type | Direct |
| TIR Repeatability (Decimal Inch) | 0.0050 |
| Number Of Jaws | 4 |
| Contents | Chuck Mounting Bolts; (1) Set of HD Master & Hard Top Reversible Jaws; Eye Bolts; Chuck Wrench; Hex Keys |
