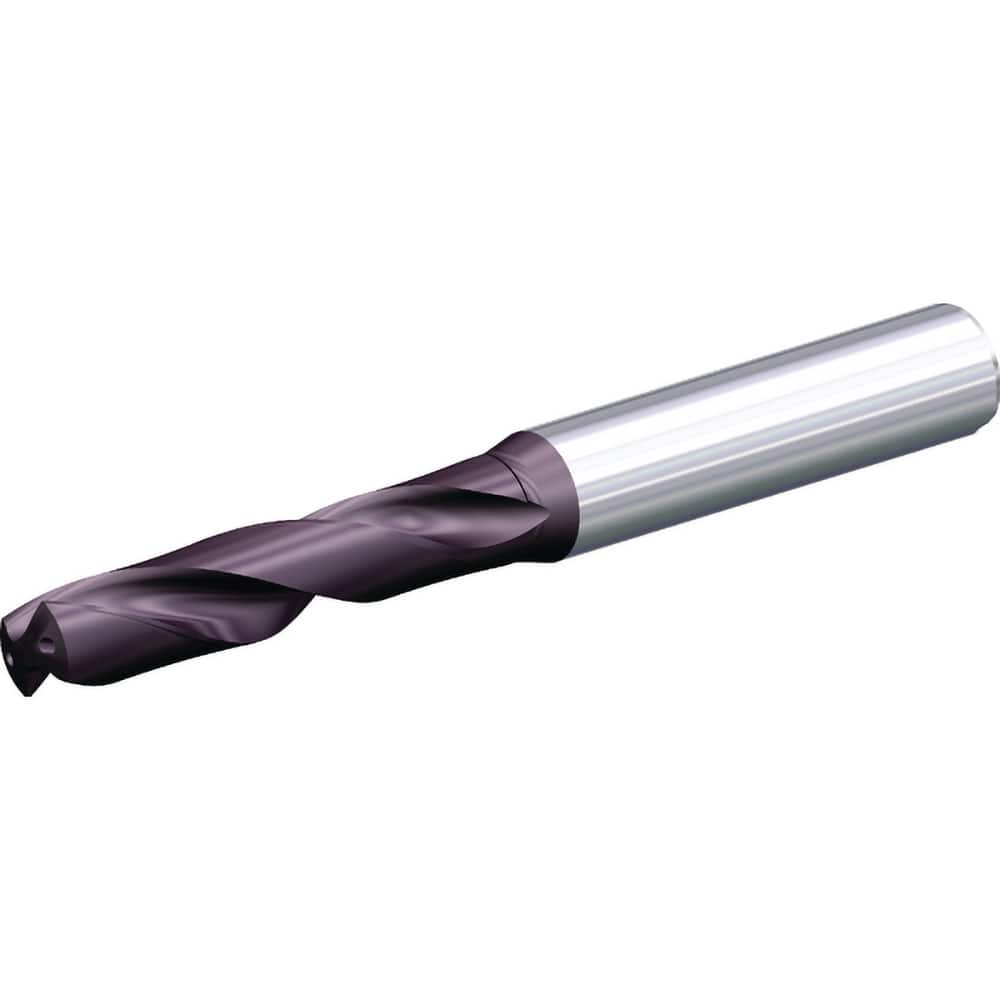

Screw Machine Length Drill Bit: 140 °, Solid Carbide Bright/Uncoated, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series K210
Item #: 13210737
Brand: Kennametal
Model #: 6351020
Product Specifications
| Drill Bit Size (mm) | 4.22 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Bright/Uncoated |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.1875 |
| Overall Length (mm) | 68.00 |
| Overall Length (Decimal Inch) | 2.6772 |
| Shank Diameter (mm) | 4.76 |
| Series | K210 |
| Maximum Drilling Depth (Decimal Inch) | 0.8898 |
| Maximum Drilling Depth (mm) | 22.60 |
| Shank Length (Decimal Inch) | 1.4370 |
| Shank Length (mm) | 36.50 |
| Drill Point Length (mm) | 0.62 |
| Drill Point Length (Decimal Inch) | 0.0244 |
| Flute By Diameter Ratio | 5xD |
| Flute Length (Decimal Inch) | 1.1417 |
| Flute Length (mm) | 29.00 |
| Drill Bit Size Range (Decimal Inch) | 0.1500 to 0.2000 |
