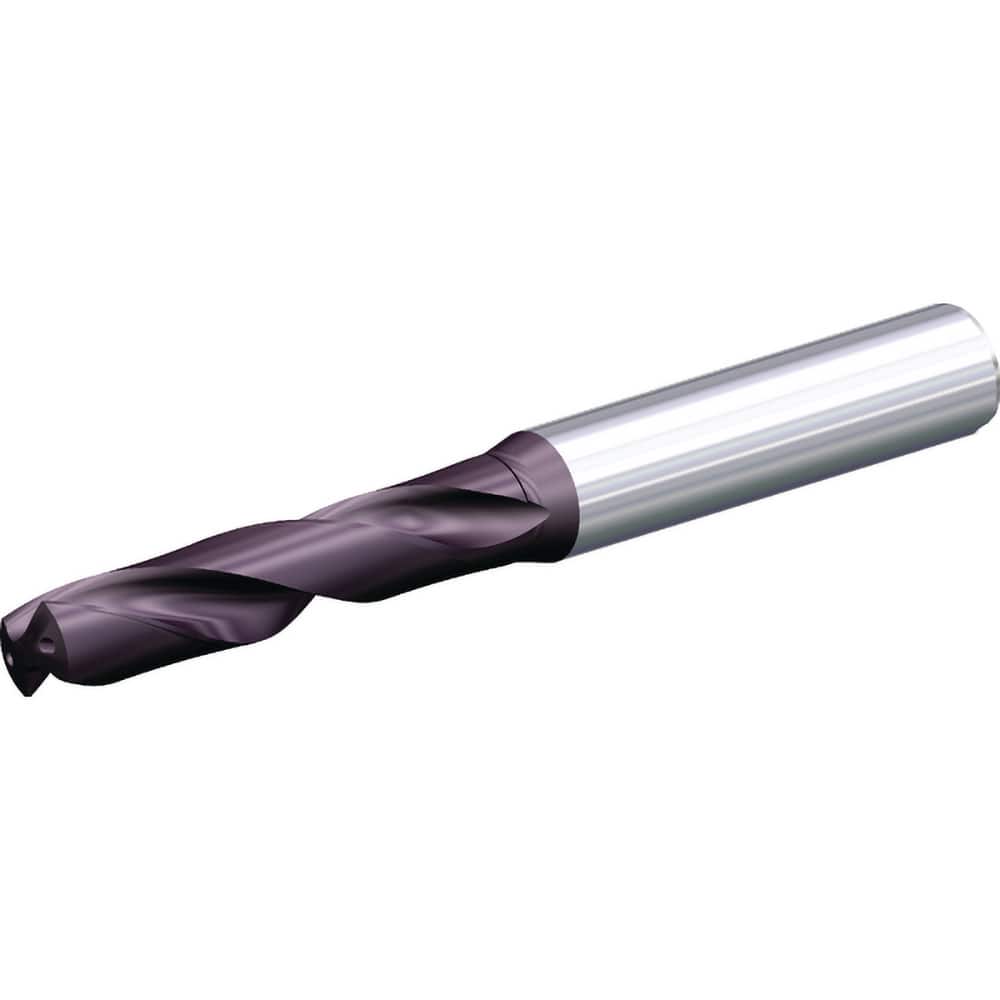

Screw Machine Length Drill Bit: 140 °, Solid Carbide Coated, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank, Series B210
Item #: 13210588
Brand: Kennametal
Model #: 6393585
Product Specifications
| Drill Bit Size (Inch) | 19/64 |
| Drill Bit Size (mm) | 7.54 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Coolant Through | Yes |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3150 |
| Overall Length (mm) | 79.00 |
| Overall Length (Decimal Inch) | 3.1102 |
| Shank Diameter (mm) | 8.00 |
| Series | B210 |
| Maximum Drilling Depth (Decimal Inch) | 1.1417 |
| Maximum Drilling Depth (mm) | 29.00 |
| Shank Length (Decimal Inch) | 1.4173 |
| Shank Length (mm) | 36.00 |
| Drill Point Length (mm) | 1.12 |
| Drill Point Length (Decimal Inch) | 0.0441 |
| Flute By Diameter Ratio | 3.5xD |
| Flute Length (Decimal Inch) | 1.6142 |
| Flute Length (mm) | 41.00 |
| Drill Bit Size Range (Decimal Inch) | 0.2500 to 0.3000 |
