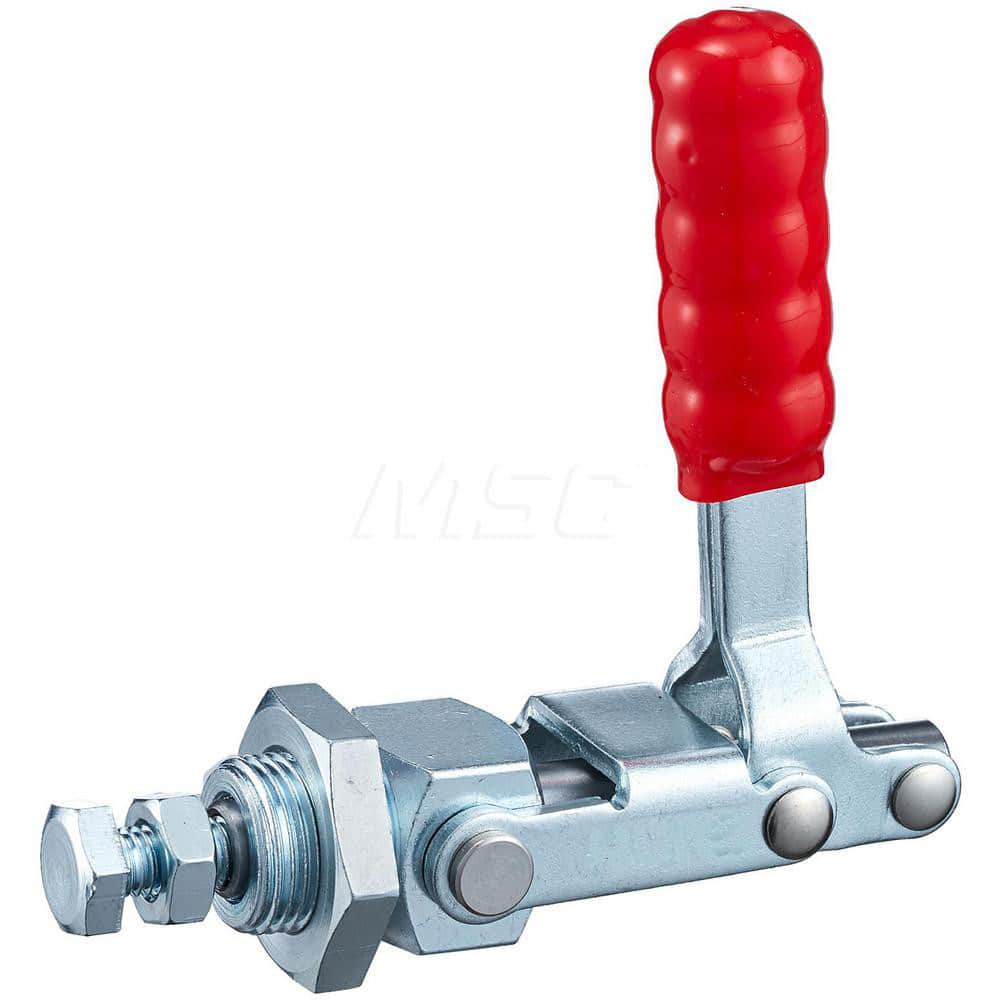

Standard Straight Line Action Clamp: 300 lb Load Capacity, 1.5354″ Plunger Travel, Steel 0.429″ Plunger Dia, Straight Handle
Item #: 12098109
Brand: Hertel
Model #: CH-36204
Product Specifications
| Load Capacity (Lb. - 3 Decimals) | 300.00 |
| Load Capacity (N) | 1334.46 |
| Load Capacity | 136.08 |
| Load Capacity | 300 lb; 1334.46 N; 136.08 lb |
| Plunger Travel (Decimal Inch) | 1.5354 |
| Plunger Travel | 39 mm; 1.5354 in |
| Plunger Travel (mm) | 39.00 |
| Plunger Shape | Round |
| Plunger Thread Style | Internal |
| Plunger Thread Size | 5/16-18 |
| Plunger Diameter (mm) | 10.90 |
| Plunger Diameter (Decimal Inch) | 0.4290 |
| Handle Style | Straight |
| Clamp Material | Steel |
| Material | Steel |
| Overall Length (Decimal Inch) | 4.6770 |
| Overall Length (mm) | 118.80 |
| Overall Height (Mm - 5 Decimals) | 101.00 |
| Overall Height (Decimal Inch) | 3.9760 |
| Handle Color | Red |
| Includes | (2) Nuts; (1) Spindle |
| Holding Capacity (kg) | 136.08 |
| Holding Capacity (N) | 1334.46 |
| Handle Movement (Degrees) | 180 |
| Spindle Length (mm) | 50.00 |
| Spindle Length (Decimal Inch) | 1.9700 |
| Handle Orientation | Horizontal |
| Finish Coating | Zinc-Plated |
| Holding Capacity (Lb.) | 300.00 |
