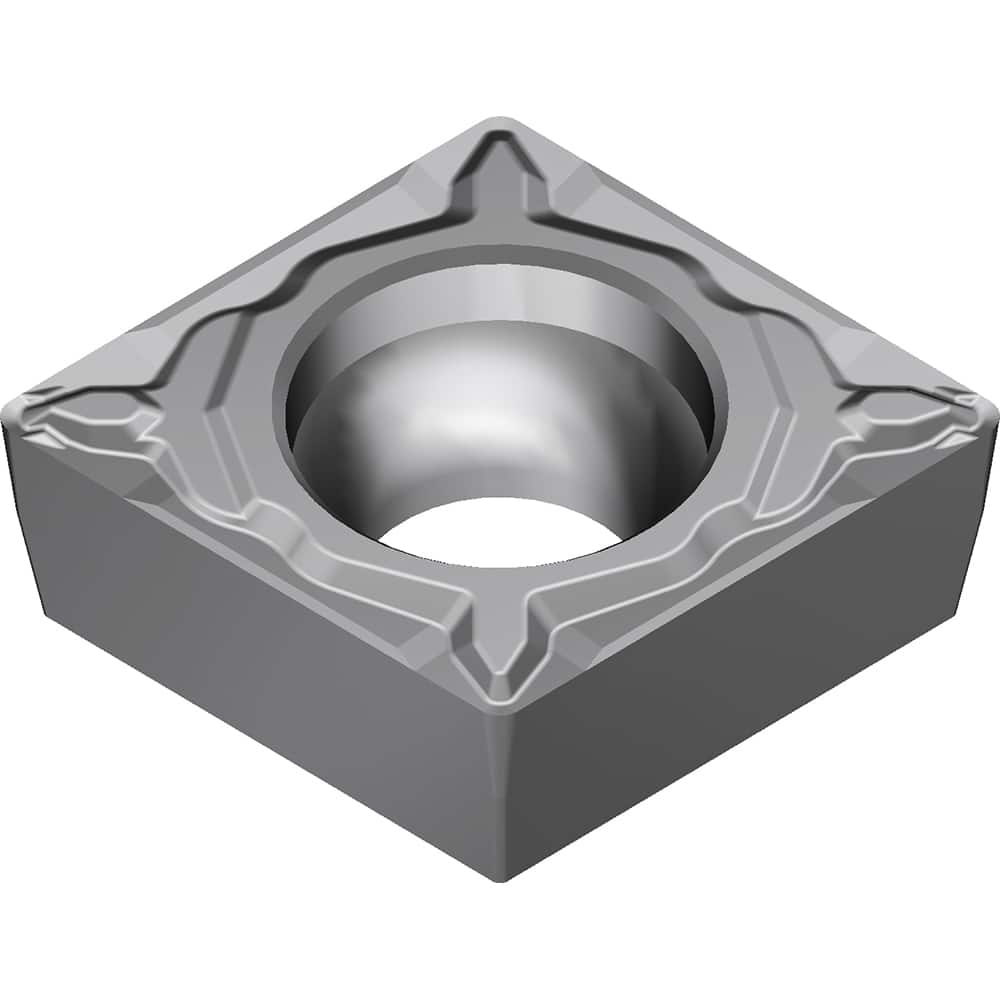

CPMT2.51.51ELU AC8015P Carbide Turning Insert Absotech Finish, 8mm Long, 7.94mm Inscribed Circle, 0.4mm Corner Radius, 2.38mm Thick, 80° Included Angle, Series AC8000P
Item #: 12071148
Brand: Sumitomo
Model #: 19T4BVV
Product Specifications
| Insert Style | CPMT |
| Insert Shape Code | C |
| Insert Size Code | 2.51.51 |
| Clearance Code | P |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC8015P |
| Hole Diameter (Mm) ( - 0 Decimals) | 3.40 |
| Inscribed Circle (mm) | 7.94 |
| Insert Holding Method | Screw-On |
| Insert Thickness | 2.38 |
| Corner Radius (mm) | 0.40 |
| Included Angle | 80.0 |
| Relief Angle | 11 |
| Series | AC8000P |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (mm) | 8.00 |
| Primary Workpiece Material | Steel |
| Iso Code | CPMT080204N-LU |
| Manufacturers Catalog Number | CPMT2.51.51ELU-AC8015P |
| Chip Breaker | ELU |
| Coating/Finish | Absotech |
