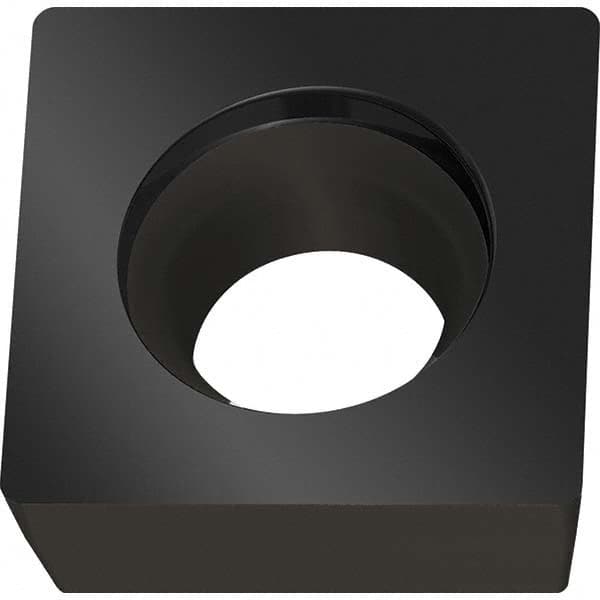

Turning Insert [DELETE]
Item #: 11734977
Brand: Walter
Model #: 7469034
Product Specifications
| Insert Style | SPMW |
| Insert Shape Code | S |
| Insert Size Code | 32.52 |
| Insert Shape | Square |
| Clearance Code | P |
| Tolerance Code | M |
| Manufacturer Grade | WSM01 |
| Maximum Depth of Cut (mm) | 3.99 |
| Maximum Depth of Cut (Decimal Inch) | 0.1570 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Series | Tiger-tec Silver |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Superalloy; Stainless Steel |
| Primary Workpiece Material Code | S; M |
| Secondary Workpiece Material | Hard Material; Non-Ferrous Metal; Steel |
| Secondary Workpiece Material Code | P; H; N |
| Ansi Code | SPMW3(2.5)2RK6WSM01 |
| Iso Code | SPMW32.52-RK6 WSM01 |
| Standards | ISO; ANSI |
| Chip Breaker | RK |
| Width (Decimal Inch - 4 Decimals) | 0.3700 |
| Width (Mm - 2 Decimals) | 9.53 |
| Coating/Finish | Coated |
