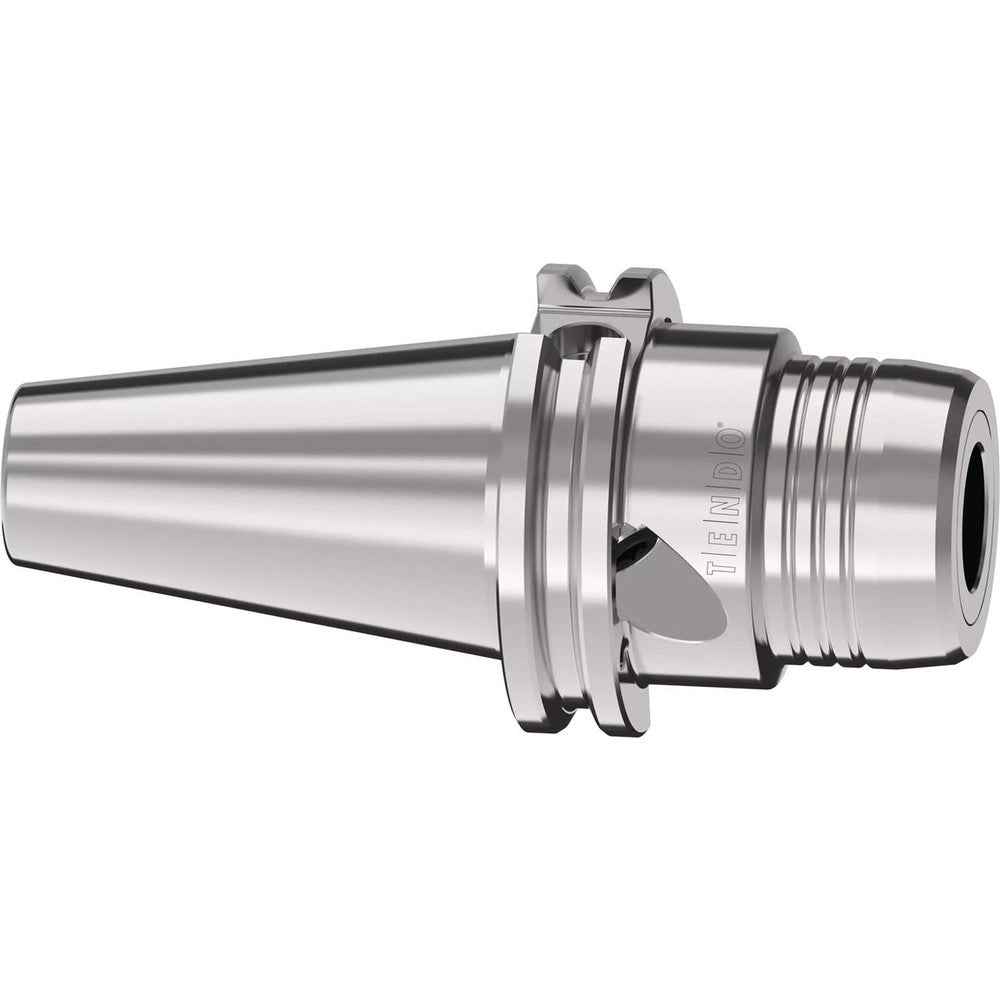

Hydraulic Tool Chuck: CAT40 Taper Shank, 1/2" Hole
Item #: 08839714
Brand: Schunk
Model #: 1436818
Product Specifications
| Shank Type | Taper |
| Taper Size | CAT40 |
| Hole Diameter (Inch) | 1/2 |
| Hole Diameter (Decimal Inch) | 0.5000 |
| Shank Diameter (Decimal Inch) | 1.7500 |
| Shank Diameter (mm) | 44.4500 |
| Shank Diameter (Inch) | 1-3/4 |
| Nose Diameter | 1-5/32 |
| Nose Diameter (Mm) ( - 2 Decimals) | 29.55 |
| Projection (mm) | 63.500 |
| Projection | 2-1/2 |
| Clamping Depth (mm) | 46.00 |
| Clamping Depth (Decimal Inch) | 1.8110 |
| Balanced To Rpm | 25000 |
| TIR (Decimal Inch) | 0.000118 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 4.375 |
| Overall Length (mm) | 111 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.1634 |
| Projection (Decimal Inch) | 2.5 |
| UNSPSC Code | 27112800 |
