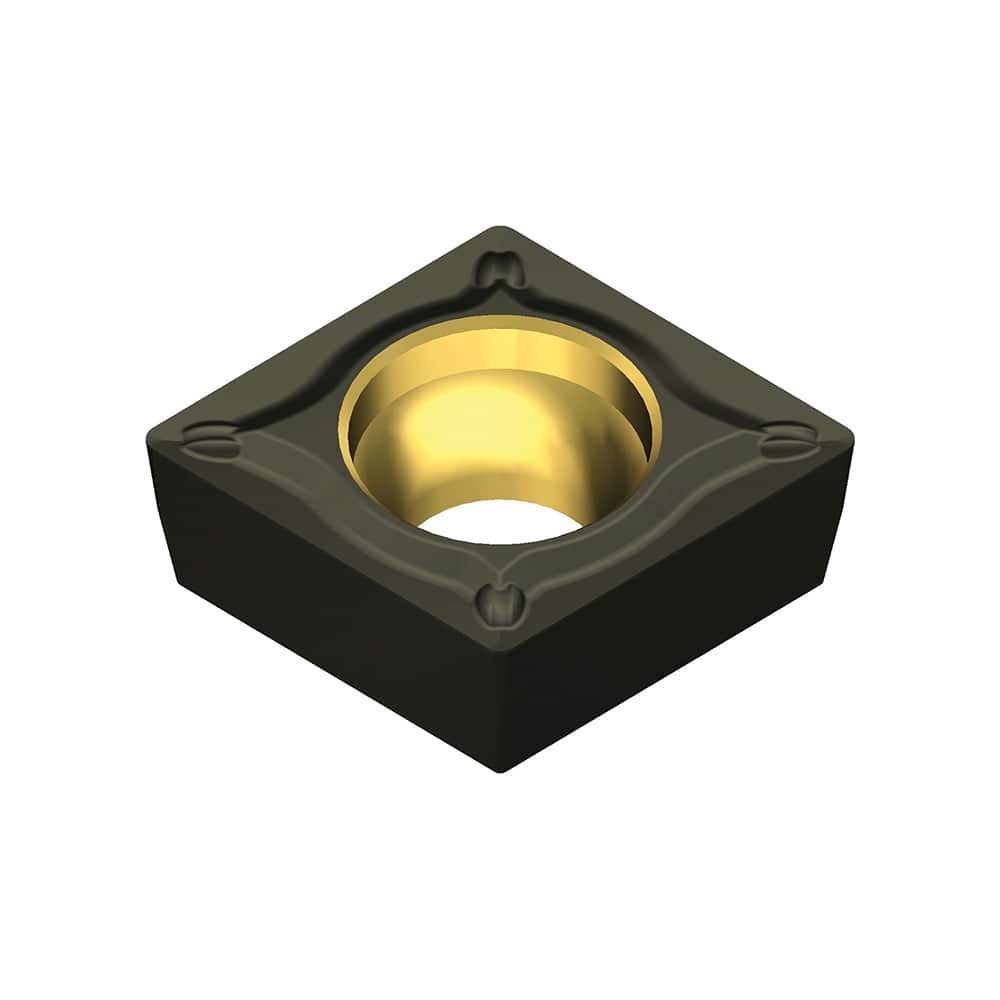

CCMT21.52EGU-AC4015K Carbide Turning Insert Al2O3/TiCN Finish, 6.4mm Long, 1/4″ Inscribed Circle, 0.0315″ Corner Radius, 0.0937″ Thick, 80° Included Angle, Series AC4000K
Item #: 11098472
Brand: Sumitomo
Model #: 19T2DCK
Product Specifications
| Insert Style | CCMT |
| Insert Shape Code | C |
| Insert Size Code | 21.52 |
| Clearance Code | C |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | AC4015K |
| Hole Diameter (Decimal Inch) | 0.1103 |
| Inscribed Circle (Inch) | 1/4 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Insert Holding Method | Screw-On |
| Insert Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Relief Angle | 7 |
| Series | AC4000K |
| Coating Process | CVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Insert Length (Decimal Inch) | 0.2520 |
| Insert Length (mm) | 6.40 |
| Iso Code | CCMT060208N-GU |
| Manufacturers Catalog Number | CCMT21.52EGU-AC4015K |
| Chip Breaker | EGU |
| Coating/Finish | TiCN; Al2O3 |
