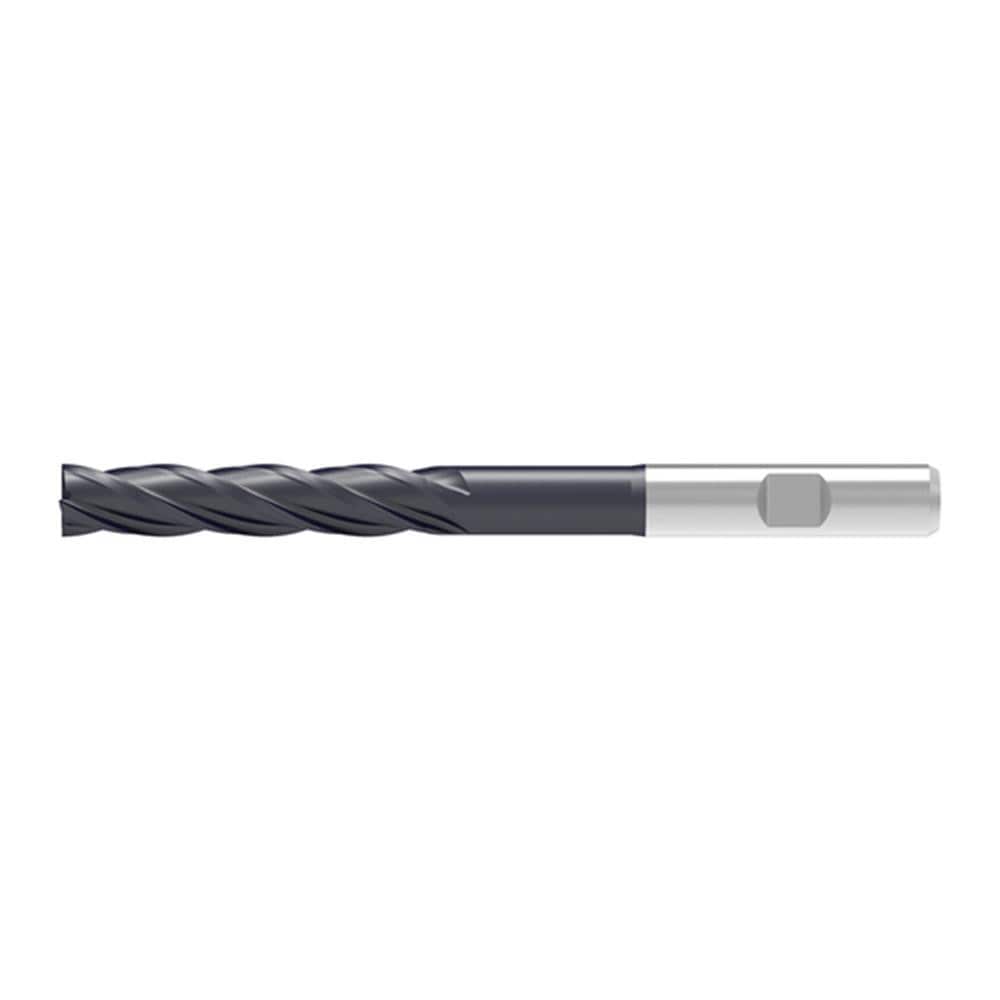

Corner Chamfer End Mill: 10.00 mm Dia, 50.00 mm LOC, 4 Flute, 0.10 mm Chamfer Width, Solid Carbide
Item #: 08528416
Brand: WNT
Model #: 5222210000
Product Specifications
| Mill Diameter (mm) | 10.00 |
| Number Of Flutes | 4 |
| Length of Cut (mm) | 50.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | DPX72S |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.10 |
| Overall Length (mm) | 120.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Extra Long |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 10.00 |
| Neck Diameter (mm) | 9.800 |
| UNSPSC Code | 23241614 |
| Series | 52222 |
