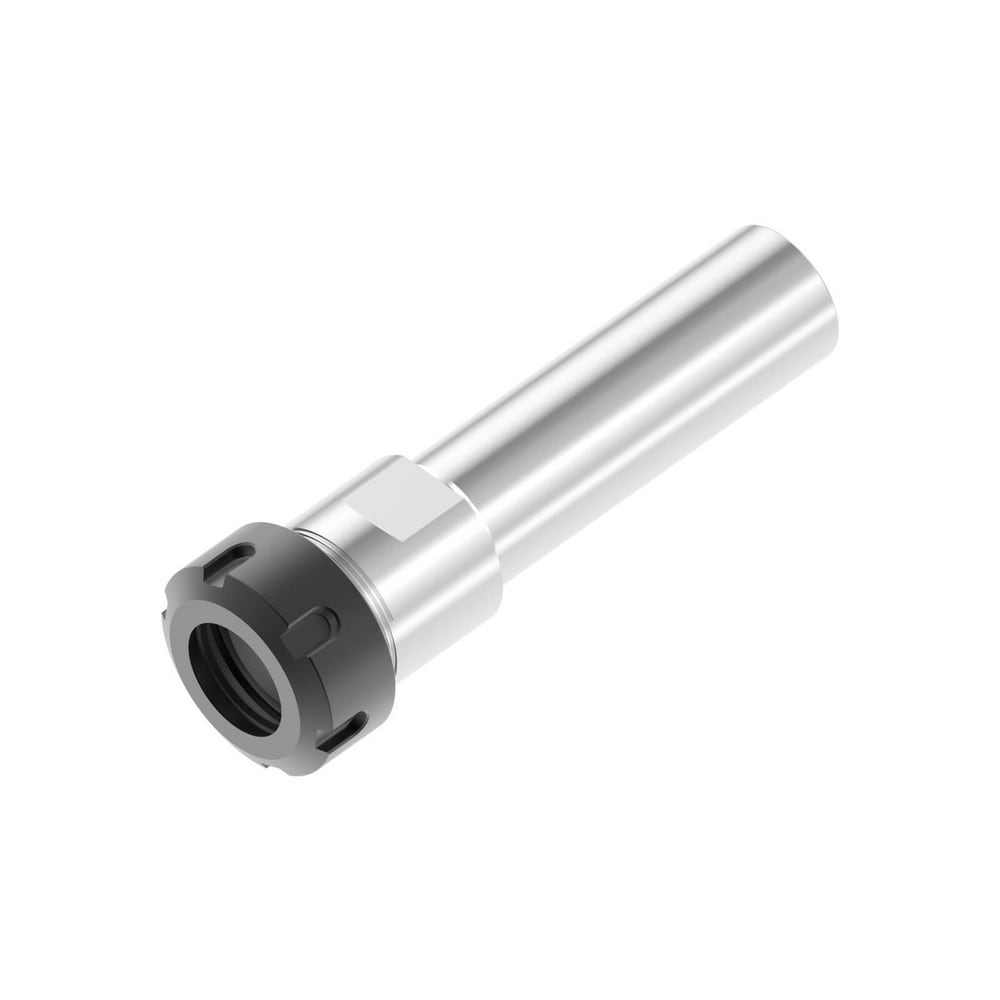

Collet Chuck: ER Collet, Straight Shank
Item #: 70049390
Brand: Seco
Model #: 10229738
Product Specifications
| Collet System | ER |
| Collet Series | ER08 |
| Shank Type | Straight |
| Projection (Decimal Inch) | 4.1339 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Maximum Collet Capacity (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 150.0000 |
| Overall Length (Decimal Inch) | 5.9055 |
| Actuator Type | Wrench |
| Dual Contact | No |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.4724 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.0000 |
| Shank Length (Decimal Inch) | 1.7716 |
| Material | Steel |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.4724 |
| Nose Type | Plain |
| Type | Collet Chuck |
| Manufacturer's Part Number | ST12-ER08R-150 |
| UNSPSC Code | 27112808 |
| Head Length (Decimal Inch) | 4.1339 |
| Quick Change | No |
| For Use With | ER Collets |
| Collet System | ER |
| Collet Series | ER08 |
| Shank Type | Straight |
| Projection (Decimal Inch) | 4.1339 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0197 |
| Maximum Collet Capacity (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 150.0000 |
| Overall Length (Decimal Inch) | 5.9055 |
| Actuator Type | Wrench |
| Dual Contact | No |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.4724 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 12.0000 |
| Shank Length (Decimal Inch) | 1.7716 |
| Material | Steel |
| Coolant Type | Through-Spindle |
| Collet Nut Diameter (Decimal Inch) | 0.4724 |
| Nose Type | Plain |
| Type | Collet Chuck |
| Manufacturer's Part Number | ST12-ER08R-150 |
| UNSPSC Code | 27112808 |
| Head Length (Decimal Inch) | 4.1339 |
| Quick Change | No |
| For Use With | ER Collets |
| MSC Part # | 70049390 |
| Mfr Part # | 10229738 |
| Country of Origin Country of Origin is subject to change | France |
